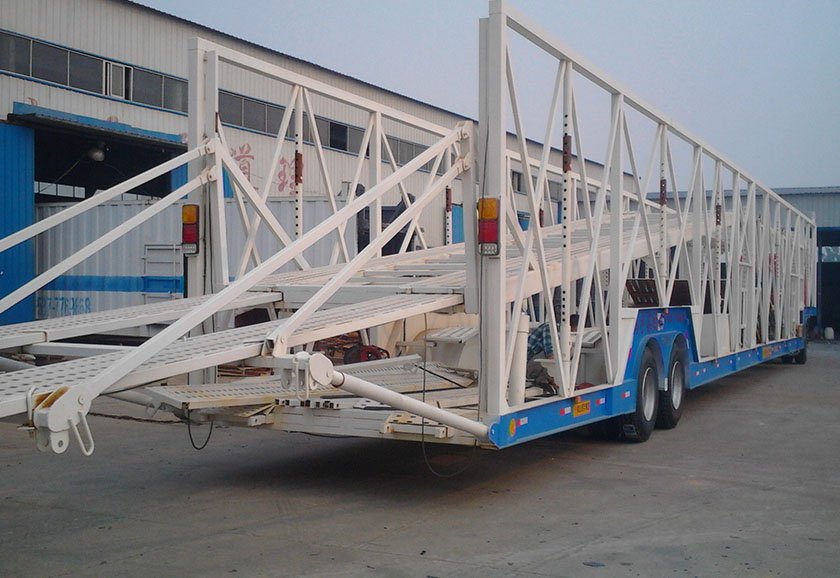

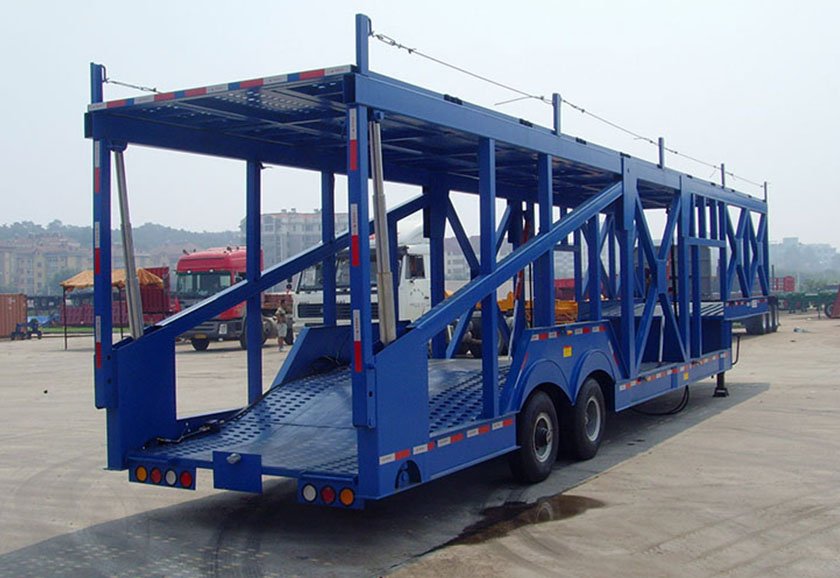

Main Description | |||
Overall Dimension (L* W *H) | 17000mm*3000mm*3950mm | ||
King pin setting | 1590mm | Wheelbase | 13850mm+1350mm |
Ground clearance | 200mm | Track | 2203mm |
Height of loading surface | 435mm | ||
Running Gear | |||
Suspension | Mechanical suspension with 8-pcs leaf spring | ||
Hubs | Cast steel 10 studs | ||
Rim & Tire | Rim 7.5-20, 4 units tire 10.00R20, single tire | ||
Axles | 2 units ANHUI 10T concave axles | ||
Brakes | Dual lines pneumatic brake system, 30/30 chambers, air-actuated | ||
Under Frame | |||
Main Beam | I shape, Mild Alloy (16Mn) by Automatic submerged arc welding, welded on left and right sides | ||
Cross beam | Mild Alloy Q235 | ||
King pin | 50# (2'') welded on plate (optional 90# ) | ||
Landing Gear | Static capacity 15Ton | ||
Body | |||
Lifting type of upper floor | Hydraulic and manual lifting mechanism | ||

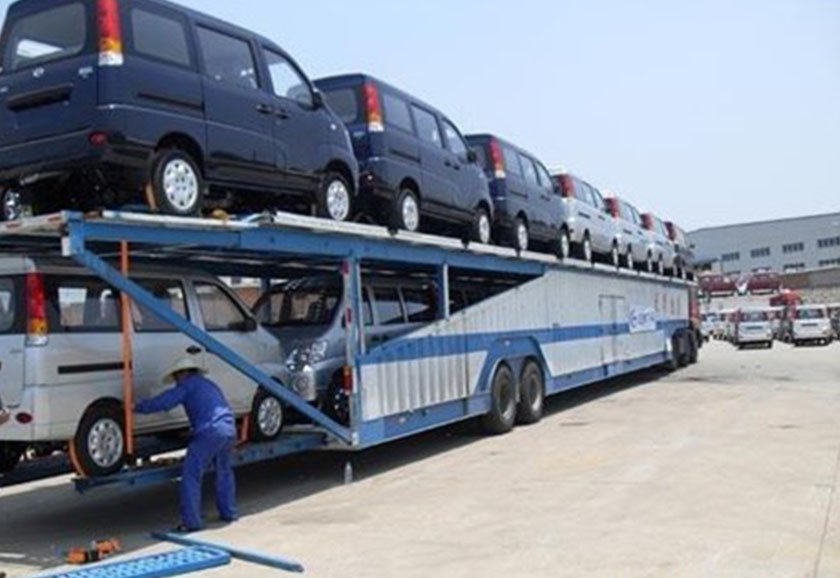

Quantity of carried cars | 10 units (4m per car) | ||
Electrical & Paint | |||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | ||
Wiring | 24V, 6 lines | ||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | ||
Color | Upon request | ||
Other | Vehicle body without canvas | ||
