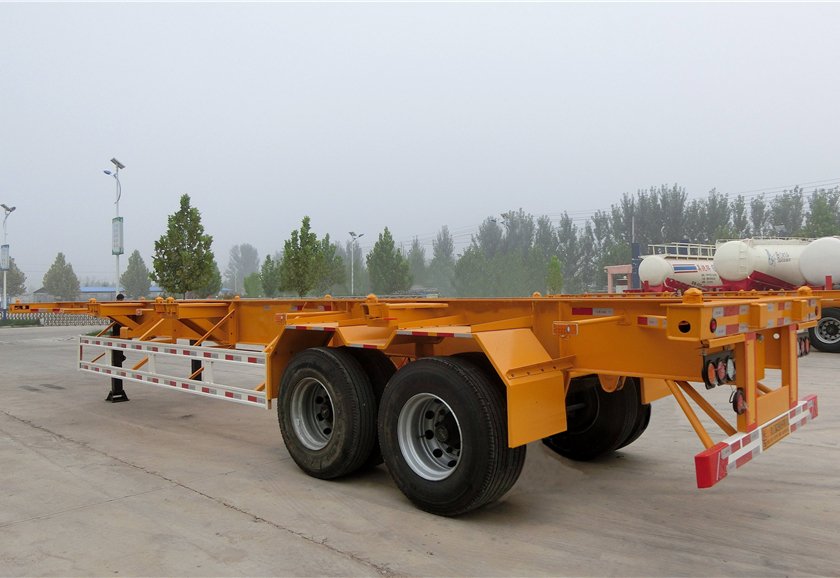

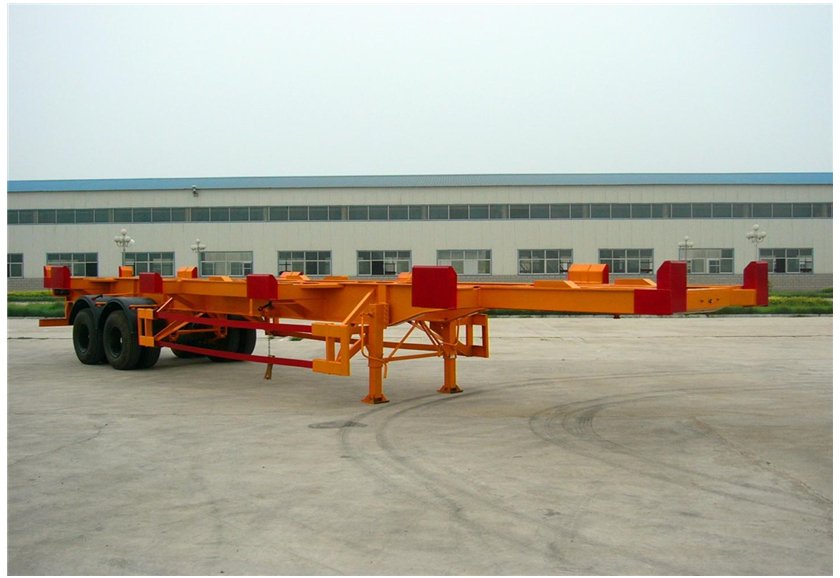

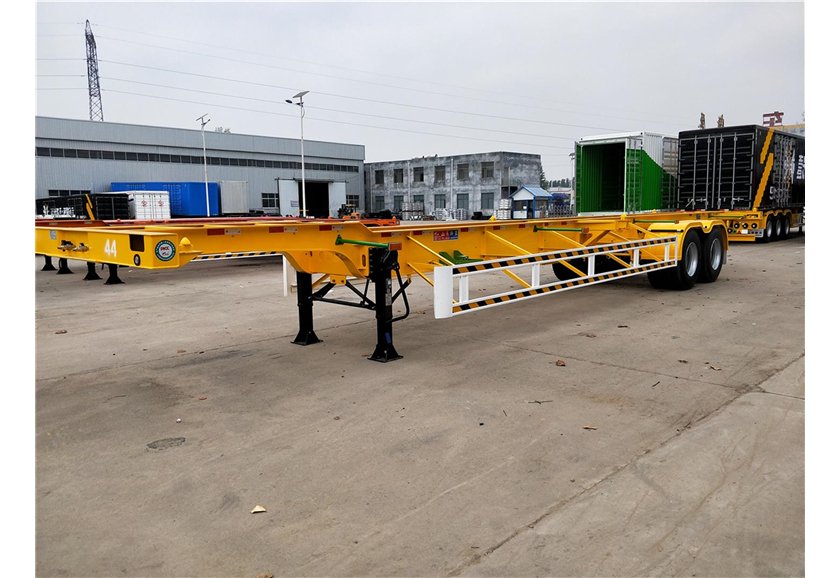

Skeleton Container Trailer I. DIMENSIONS | ||
Overall Dimension | Length(mm) | 12340 |
Width(mm) | 2500 | |
Height(mm) | 1580 | |
Tare Weight(kg) | 4800 | |
Payload(kg) | 38000 | |
Quantity of Axle | 2 | |
Wheelbase(mm) | 7800+1305 | |
Wheel Track(mm) | 1840/1840 | |
Rear Overhang(mm) | 1500 | |
Departure Angle(°) | 22 | |
II. STANDARD SPECIFICATION | ||
NO. | Products | Technical Specification, Brand, etc |
1 | Main Frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 12mm; Under Flange thickness: 14mm; Ventral Flange thickness: 6mm |
2 | Axle | 13T * 2 pcs |
3 | Landing Gear | 28T capacity, gear outside. |
4 | Braking System | Pneumatic |
5 | Air Chamber | 2 pcs double type, 1 pc single type |
6 | Leaf Spring | 10 leaves |
7 | Kingpin | 2" fabricated type |
8 | Electrical System | 24V |
9 | Tyre | 12R22.5 - 8pcs |
10 | Tool Box | With |
