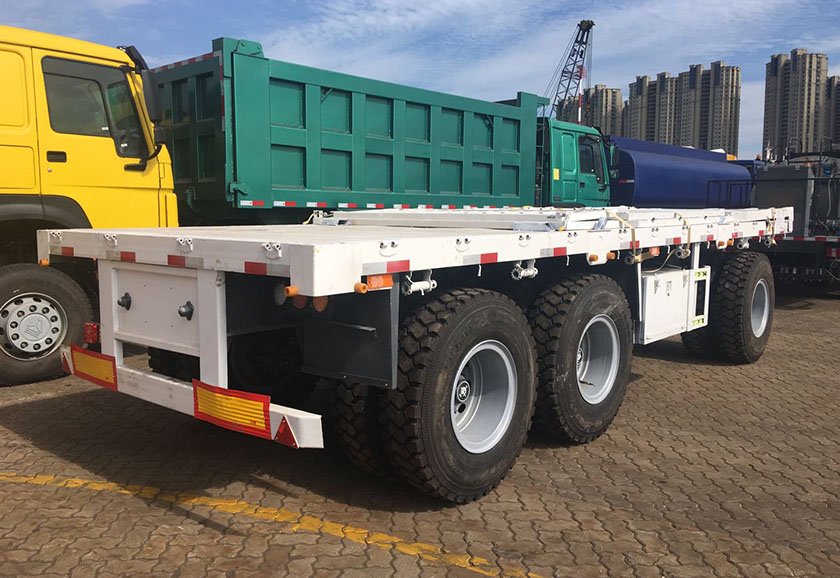

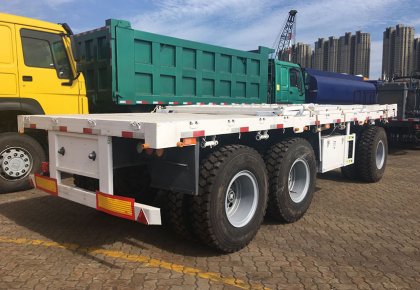

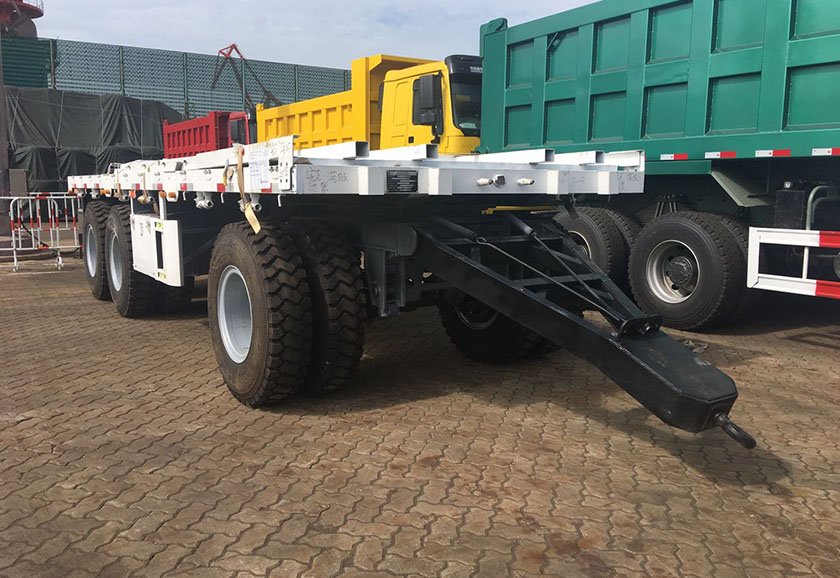

Drawbar Trailer I. DIMENSIONS | ||
Overall Dimension | Length(mm) | 9900 |
Width(mm) | 2500 | |
Height(mm) | 2900 | |
Tare Weight(kg) | 8000 | |
Payload(kg) | 25000 | |
Total Weight(kg) | 33000 | |
Quantity of Axle | 3 | |
II. STANDARD SPECIFICATION | ||
NO. | Products | Technical Specification, Brand, etc |
1 | Main Frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 300mm , Upper Flange thickness: 14mm; Under Flange thickness: 14mm;Ventral Flange thickness: 6mm |
2 | Axle | FUWA 13T |
3 | Side beam | 14# channel beam |
4 | Braking System | Pneumatic |
5 | Air Chamber | 2 pcs double type, 2 pcs single type |
6 | Leaf Spring | 10 leaves |
7 | Electrical System | 24V |
8 | Tyre | 12.00R20 - 12 pcs |
