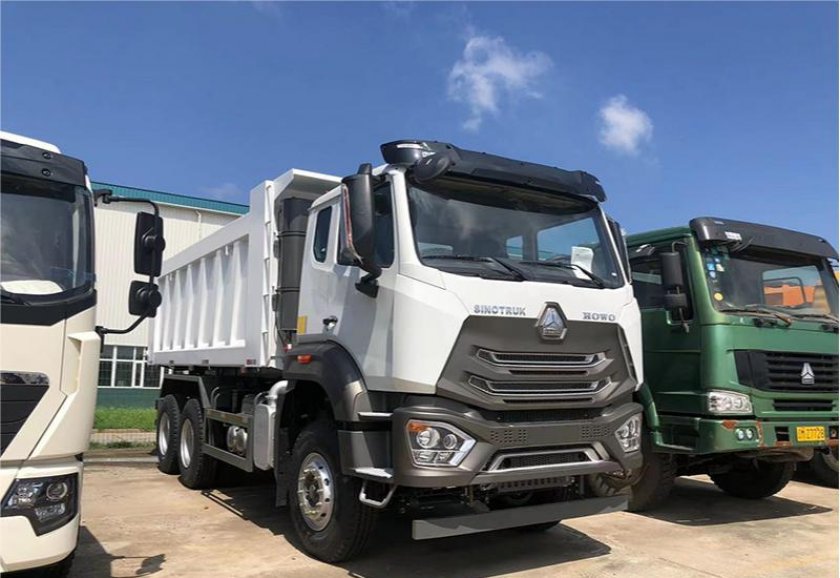

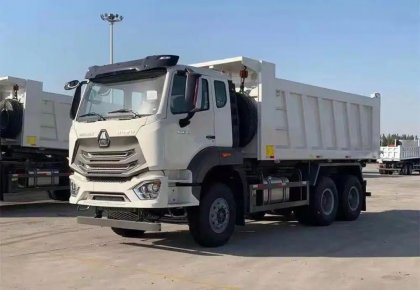

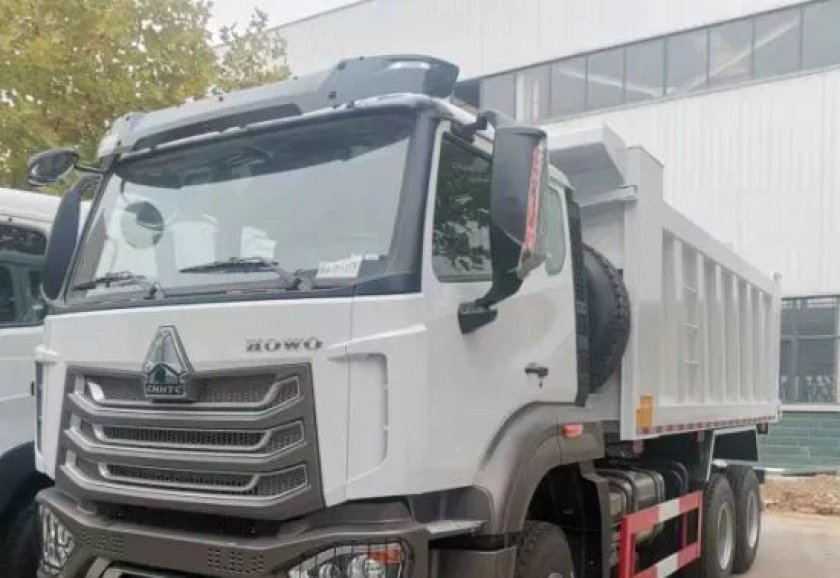

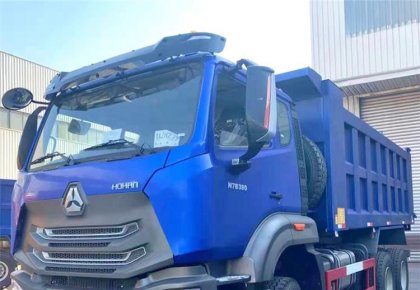

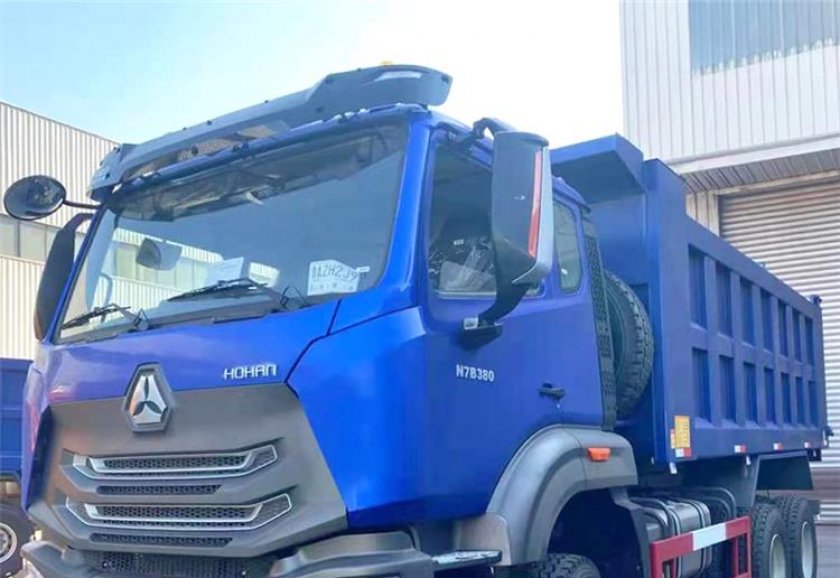

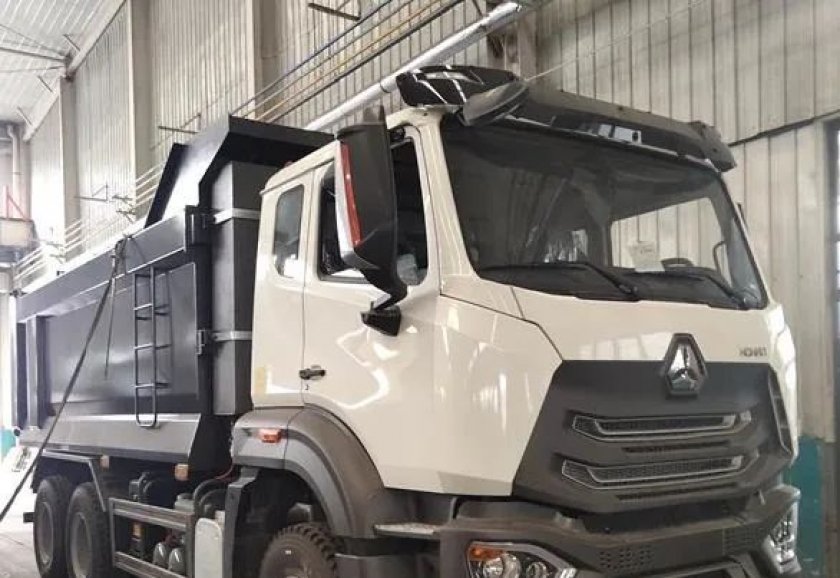

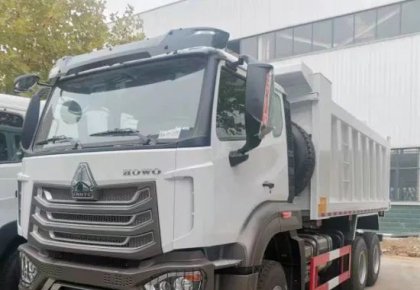

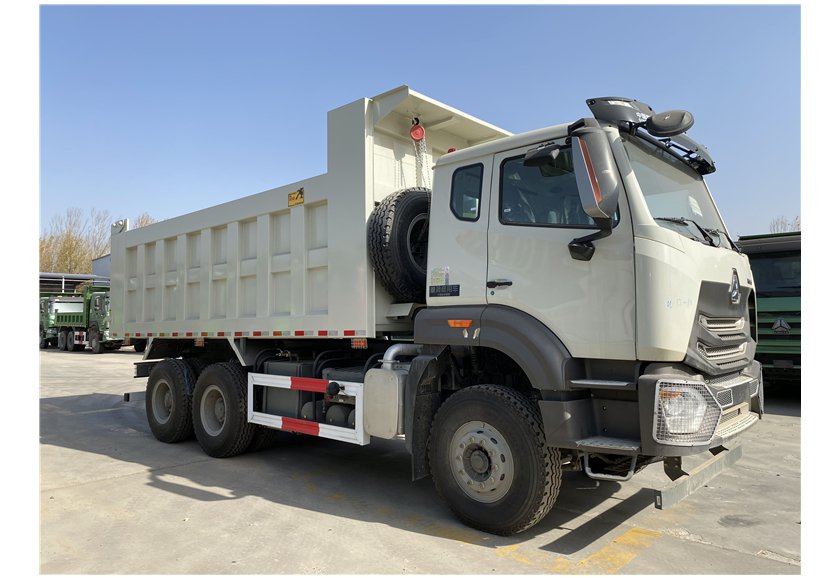

Name | New HOWO N7 6×4 Dump Truck | |
Driving model | LHD/RHD (left hand drive or right hand drive) | |
Overall dimension | 8700x2496x3350mm (Length x width x height) | |
Dump body | Type of body | ”田” |
Body size | 5600 x 2300 x 1500mm | |
Body thickness | 8mm at the bottom, 6mm at both sides | |
Lifting system | Front hydraulic system or middle hydraulic system | |
Cabin | H77L,new face,1 bed,2 seats,A/C ,USB,radio | |
Tires | 10+1 spare tyre with rim | |
12.00R20 radial tyre, 18PR, mixed pattern | ||
Wheelbase | 3800+1350mm | |
Axle | VGD95 front axle，MCX16ZG*2 rear axle | |
Engine | Model | WP10.380E22, Euro II, Diesel |
Engine power | 280KW (380HP) @ 2200 tr / min | |
Max torque | 1600 N.m @ 1500-1800 tr / min | |
Air intake type | turbo-charge and inter-cool | |
Fuel injection type | Direct injection | |
Gearbox | HW19710 gearbox with HW50 power take-off, 10 forward speeds + 2 reverse speeds | |
Steering | BOSCH Steering gearbox, hydraulic power steering. | |
Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
Suspension system | Strengthen heavy duty Leaf spring type | |
Main beam | Double-layer frame (8 + 8/300) | |
