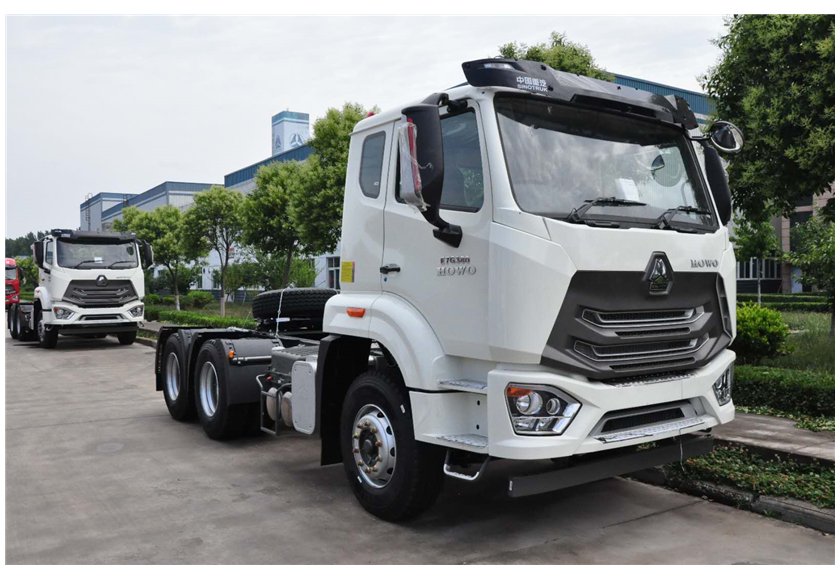

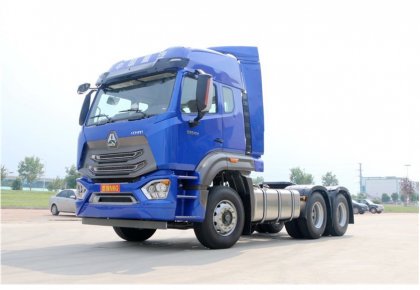

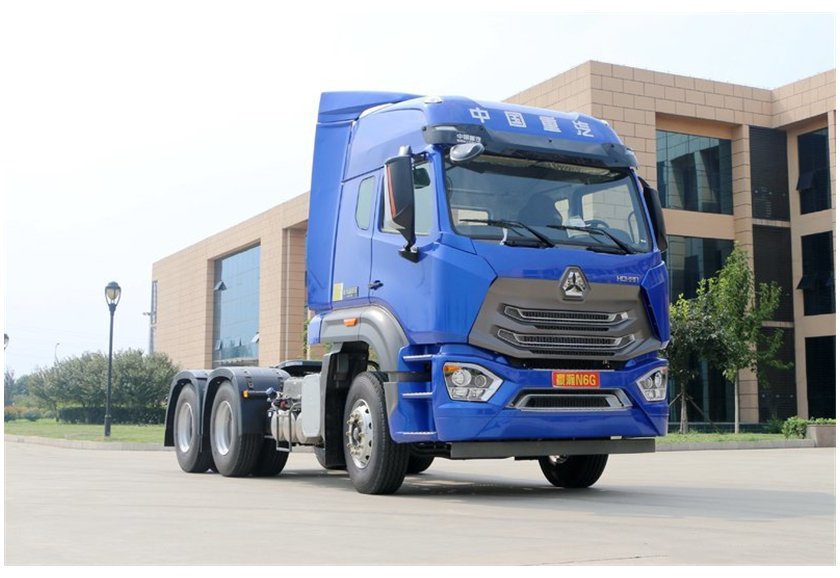

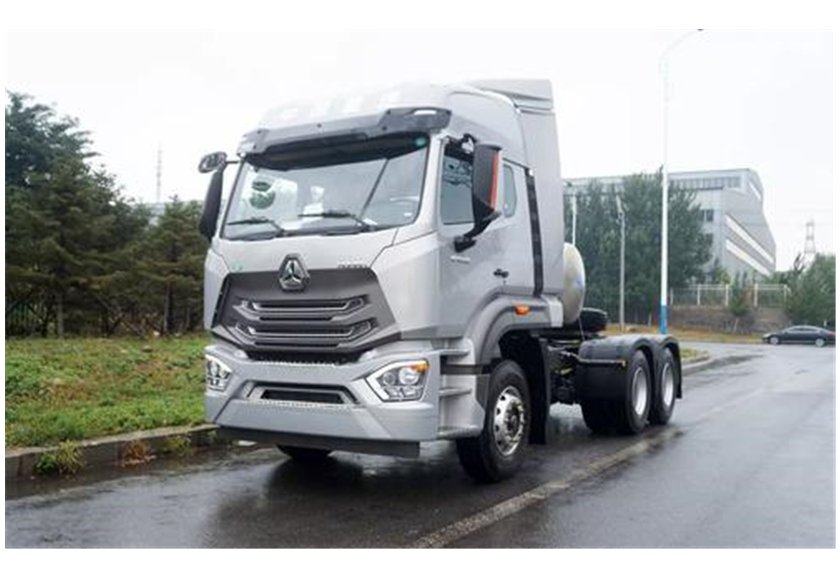

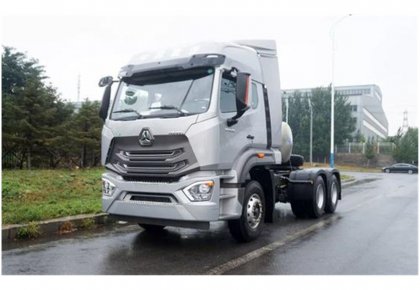

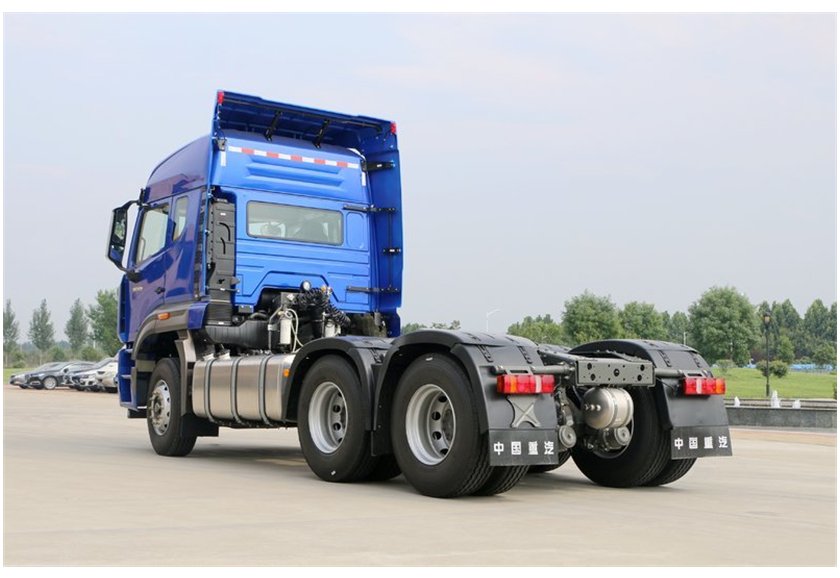

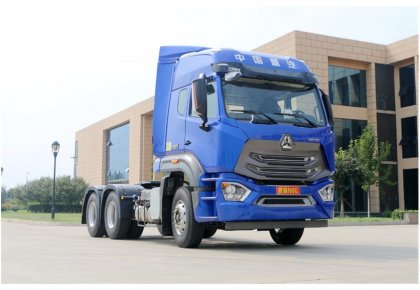

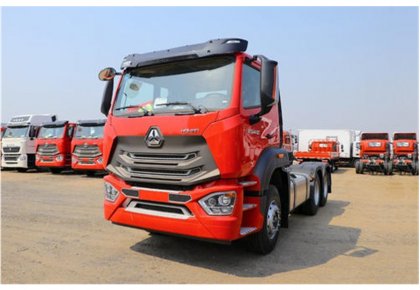

Name | New HOWO N7 6×4 Tractor Truck | |
Driving model | LHD/RHD (left hand drive or right hand drive) | |
Overall dimension | 6800x2496x3150mm (Length x width x height) | |
Cabin | H77L,new face,1 bed,2 seats,A/C ,USB,radio | |
Tires | 10+1 spare tyre with rim | |
12.00R20 radial tyre, 18PR, mixed pattern | ||
Axle | VGD71 front axle，MCY12 rear axle | |
Wheelbase | 3225+1350mm | |
Engine | Model | WP10.380E22, Euro II, Diesel |
Engine power | 280KW (380HP) @ 2200 tr / min | |
Max torque | 1600 N.m @ 1500-1800 tr / min | |
Air intake type | turbo-charge and inter-cool | |
Fuel injection type | Direct injection | |
Gearbox | HW19710 gearbox, 10 forward speeds + 2 reverse speeds | |
Fuel tank | 400L aluminum alloy fuel tank | |
Suspension | Mechanical suspension, plate spring | |
Fifth wheel | 2''( 3.5'' is optional) | |
Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
Suspension system | Strengthen heavy duty Leaf spring type | |
Frame | Partial three-story (8+8+8/300) | |
Other | ABS(4S/4M) NANO electrical system | |
