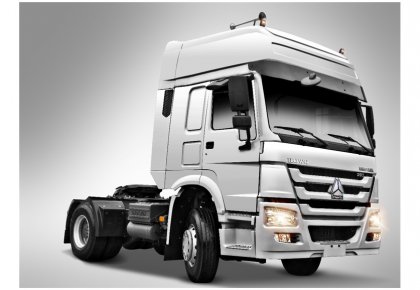

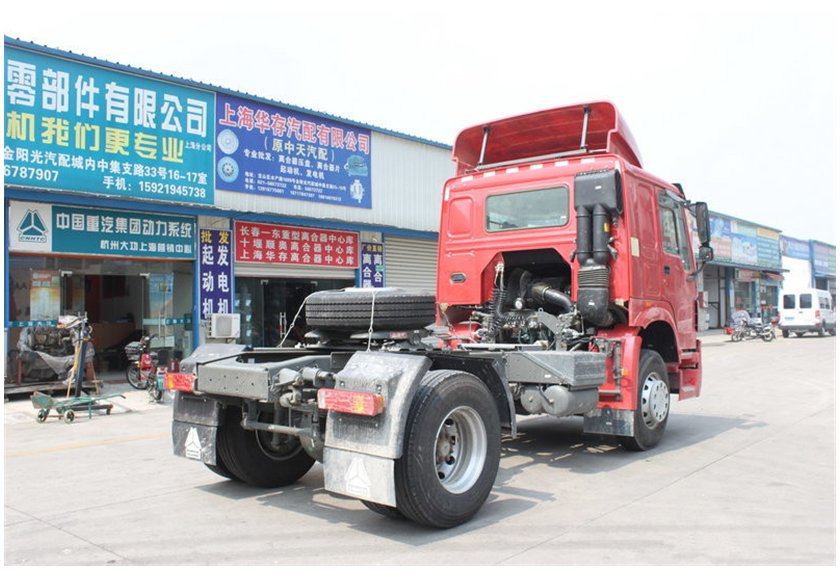

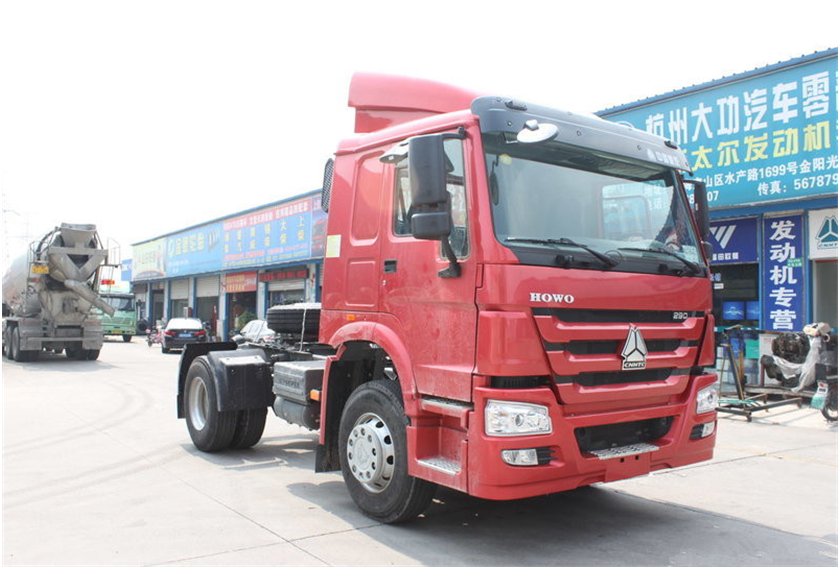

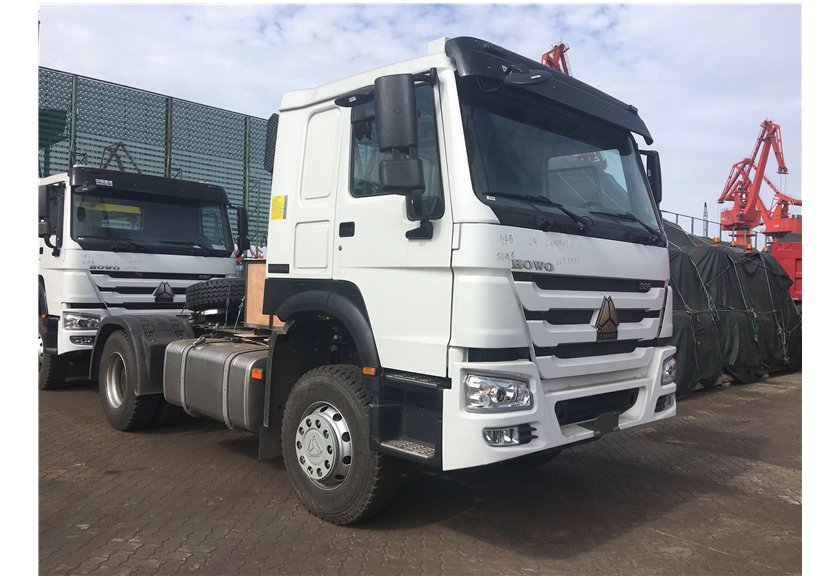

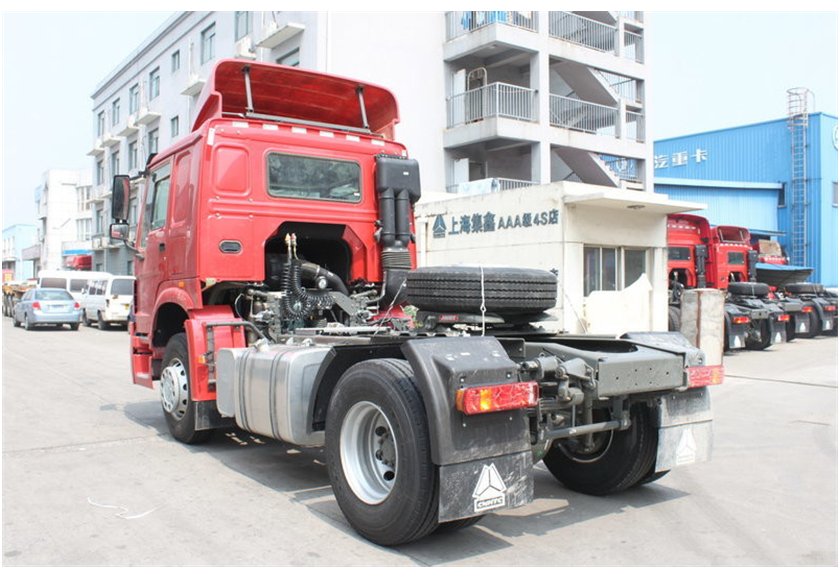

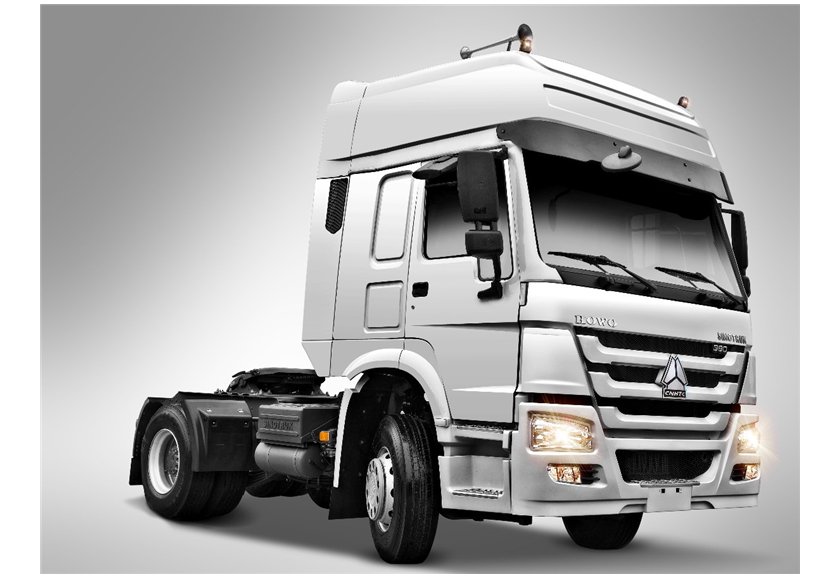

Name | New HOWO 4×2 Tractor Truck | |
Driving model | LHD/RHD (left hand drive or right hand drive) | |
Overall dimension | 6110x2496x3500mm (Length x width x height) | |
Cabin | HW76 | |
Tires | 6+1 spare tyre with rim | |
12.00R20 radial tyre, 18PR, mixed pattern | ||
Wheelbase | 3500mm | |
Axle | VGD71 front axle，ST16 rear axle | |
Engine | Model | WP10.340E22, Euro II, Diesel |
Engine power | 250KW (340HP) @ 2200 tr / min | |
Max torque | 1250 N.m @ 1400-1600 tr / min | |
Air intake type | turbo-charge and inter-cool | |
Fuel injection type | Direct injection | |
Gearbox | HW19710 gearbox, 10 forward speeds + 2 reverse speeds | |
Fifth wheel | 2''( 3.5'' is optional) | |
Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
Suspension system | Leaf spring type | |
Frame | Double-layer frame (8+5/300) | |
