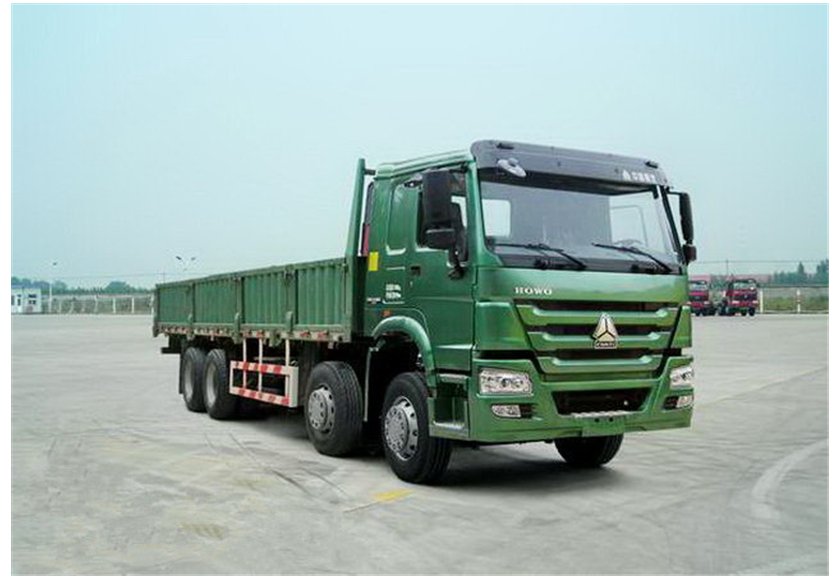

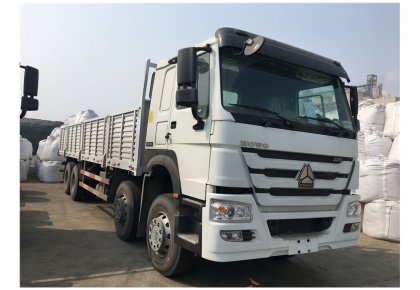

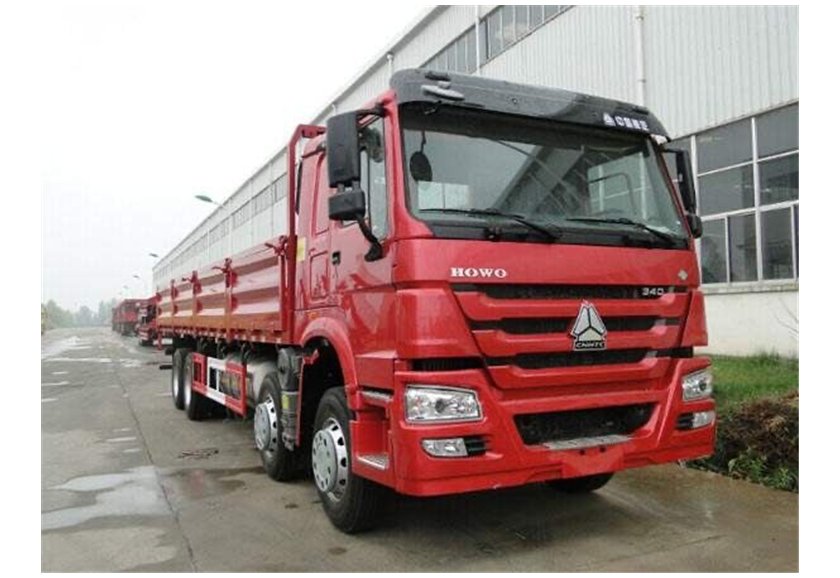

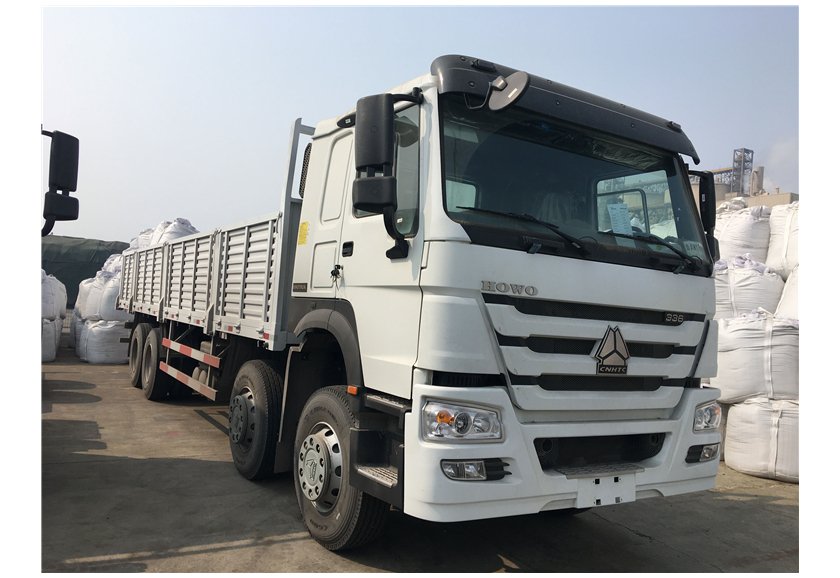

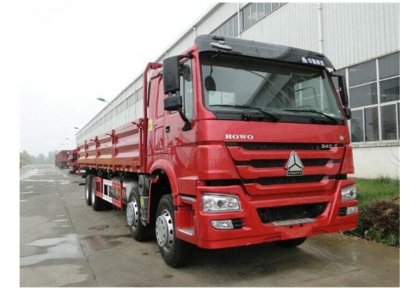

Name | HOWO 8×4 Cargo Truck | ||
Engine | Diesel 4-stoke Direct injection, Inner cooling. | ||
Model: | WP10.380E22 | WEICHAI brand | |
Engine power | 338hp/ 280kw | ||
Displacement(L): | 9.726liter (Euro 2) | ||
Max torque: | 1600NM@1500-1800rpm | ||
Bore/stoke: | 126mm/130mm | ||
Gear box | CNHTC | Max torque:2200NM | |
Model: | HW19710 | ||
Speed: | 10speed, 2reverse | ||
Axle(front/rear) | |||
Front axle | VGD95 front steering axle, drum brake | ||
Tandem | HC16 double reduction hub reductor driving axle, drum brake | ||
Steering | ZF8118, LHD, RHD is optional | ||
Tyre | 12+1 spare tyre with rim | ||
12.00R20 radial tyre | |||
Suspension system: Strengthen heavy duty Leaf spring type | |||
Front/Rear | 11/11/12 | ||
Cargo body: | |||
Inside size of Body(mm): 9280x2300x600, 3mm (floor) x 1.5mm (side), made of high intensity steel | |||
Overall dimension(mm): 11984x2500x3150 (Length x width x height) | |||
