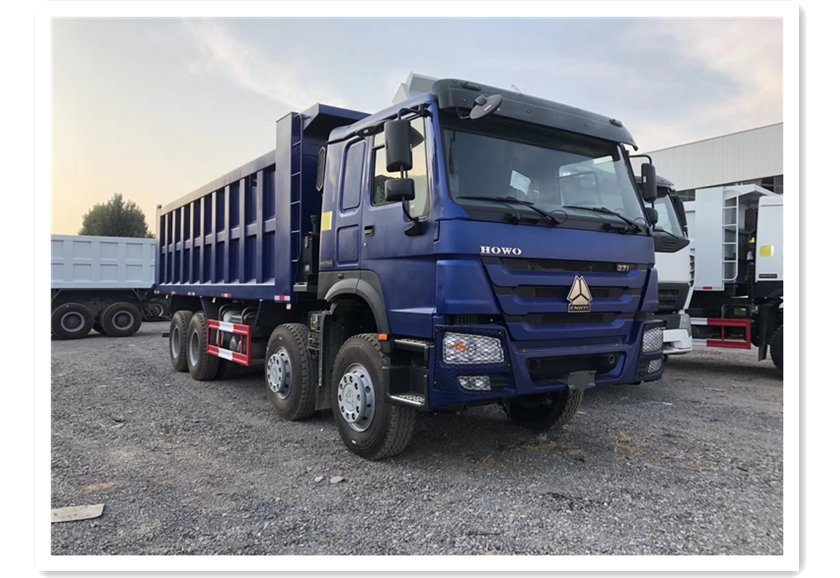

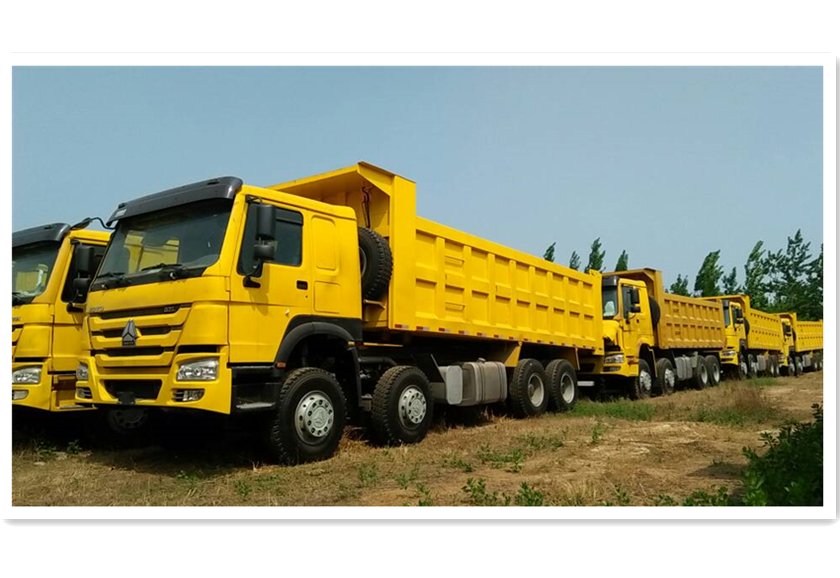

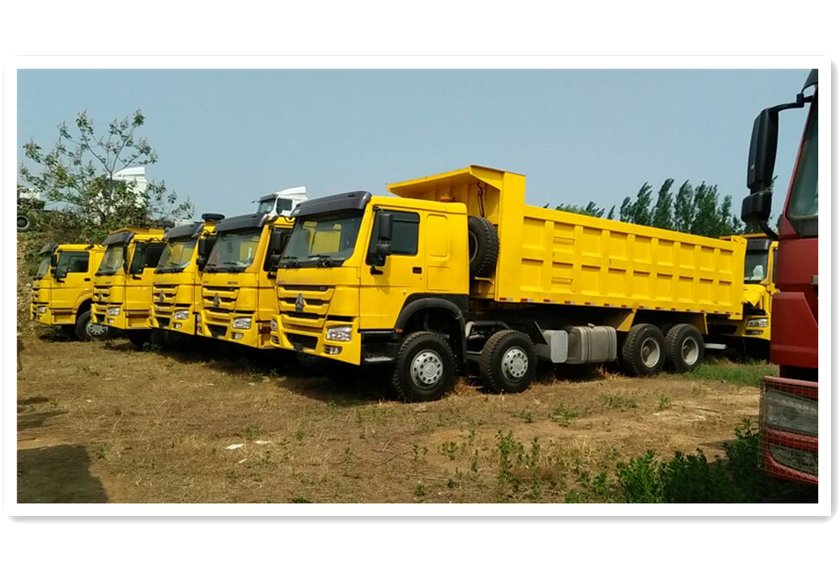

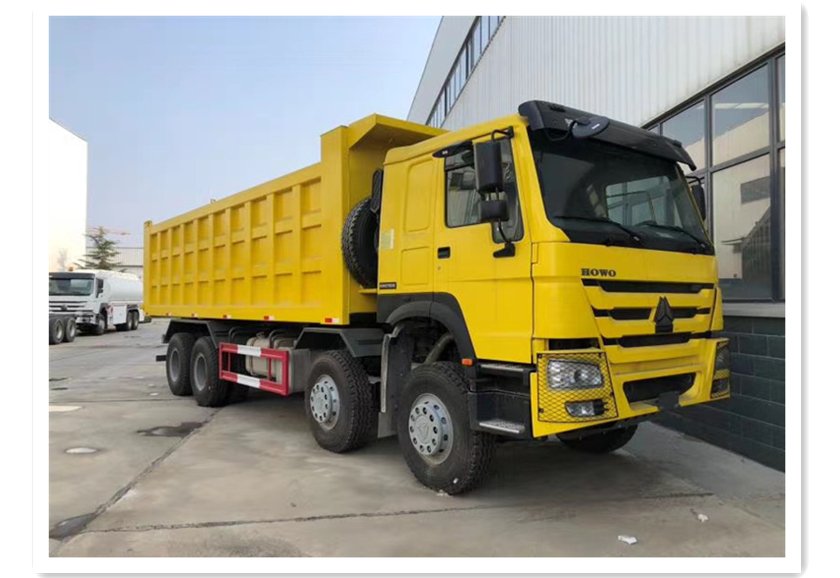

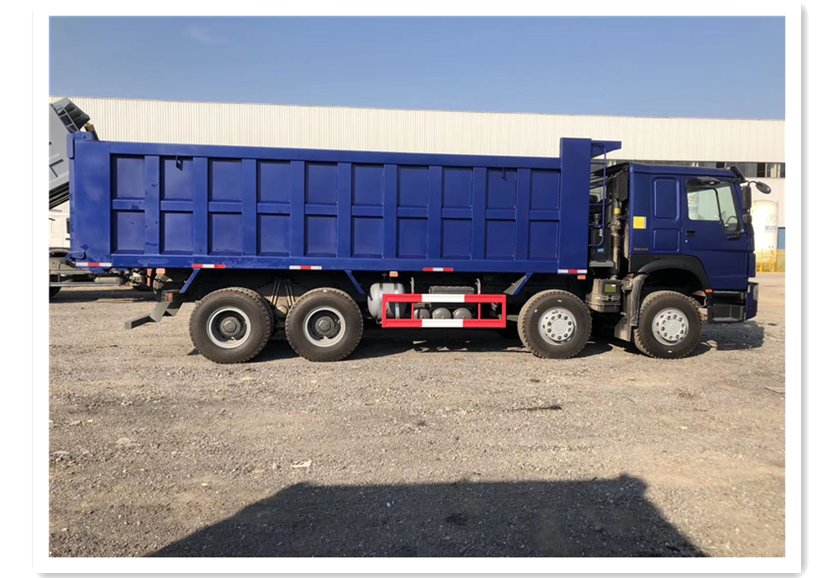

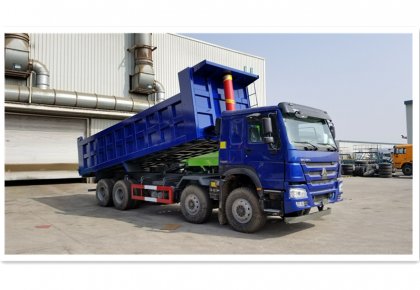

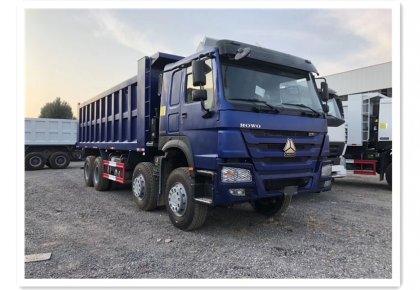

Name | New HOWO 8×4 Dump Truck | |
Driving model | LHD/RHD (left hand drive or right hand drive) | |
Overall dimension | 10345x2496x3350mm (Length x width x height) | |
Dump body | Type of body | ”田” |
Body size | 7300 x 2300 x 1500mm | |
Body thickness | 8mm at the bottom, 6mm at both sides | |
Lifting system | Front hydraulic system | |
Cabin | HW76 | |
Tires | 12+1 spare tyre with rim | |
12.00R20 radial tyre, 18PR, mixed pattern | ||
Axle | VGD95 front axle，MCP16ZG*2 rear axle | |
Engine | Model | WP12.400E201, Euro II, Diesel |
Engine power | 294KW (400HP) @ 2100 tr / min | |
Max torque | 1920 N.m @ 1200-1500 tr / min | |
Air intake type | turbo-charge and inter-cool | |
Fuel injection type | Direct injection | |
Gearbox | HW19710 gearbox with HW50 power take-off, 10 forward speeds + 2 reverse speeds | |
Steering | ZF8118 Steering gearbox, hydraulic power steering. | |
Braking system | Parking brake (emergency brake): spring energy, compressed air operating on rear wheels | |
Suspension system | Strengthen heavy duty Leaf spring type | |
Frame | Double-layer frame (8 + 8/300) | |
