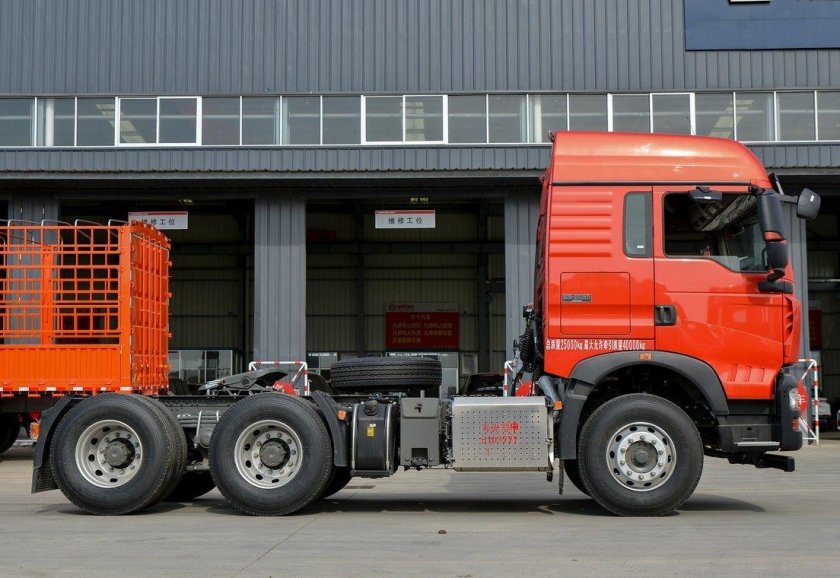

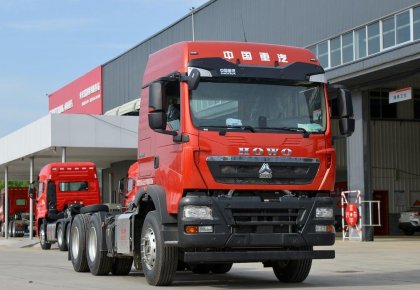

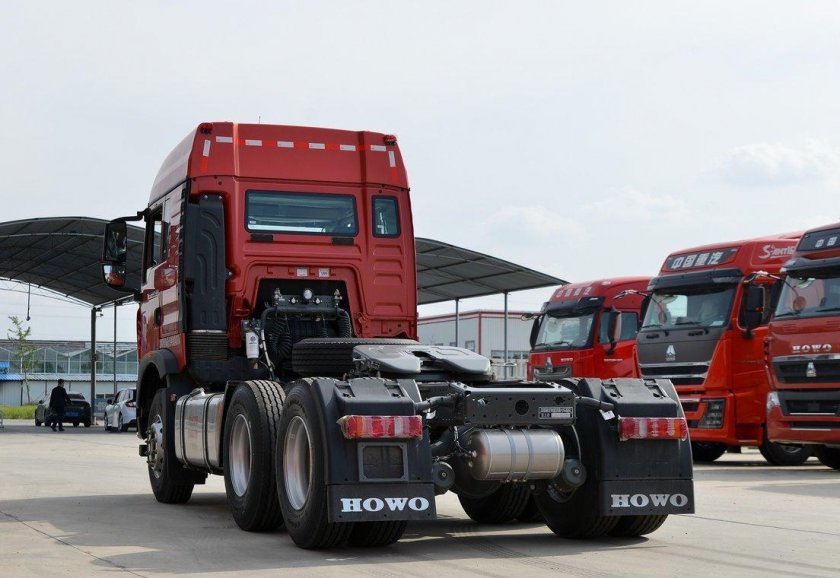

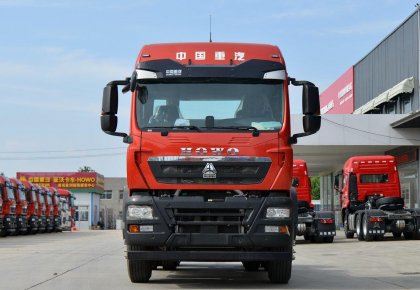

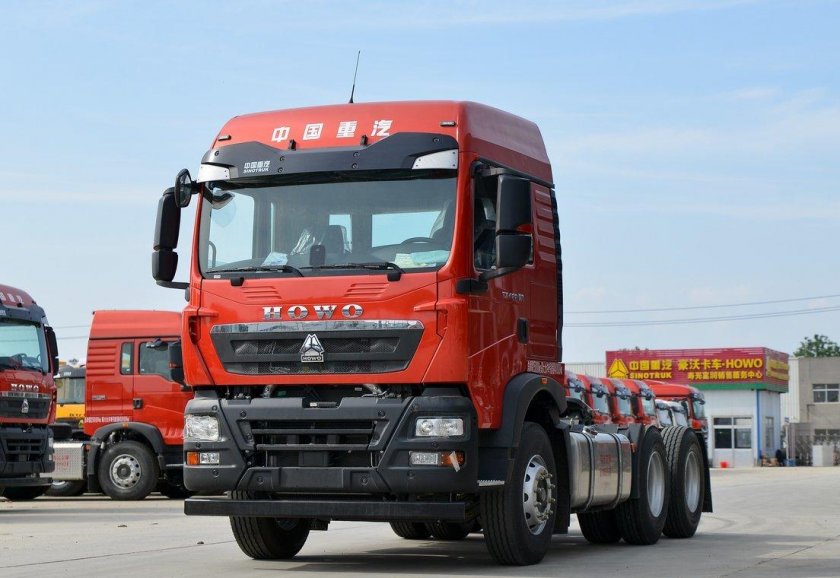

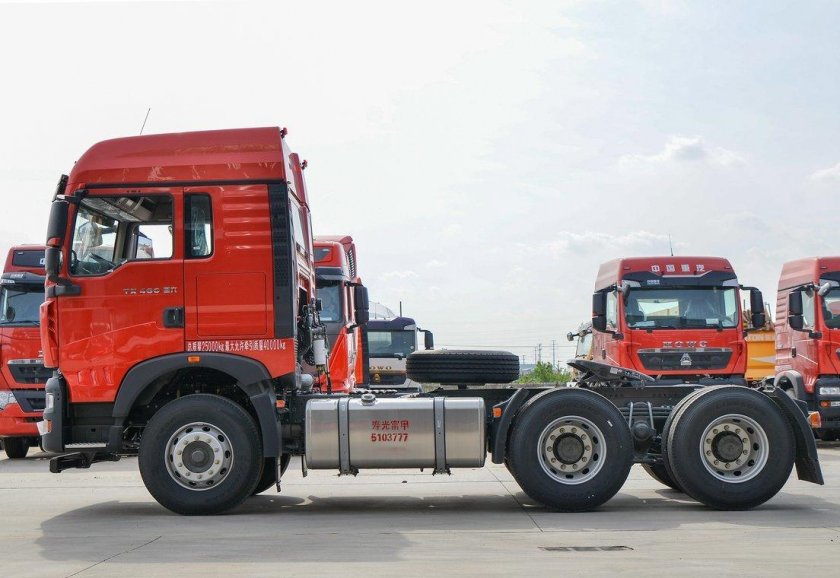

Name | New HOWO TX 6×4 Tractor Truck | |
Size (mm) | 6900 x 2550 x 4000 | |
Cab | TX cabin with A/C | |
Tires | 315/80R22.5, 10+1pcs | |
Axle | VGD95 front axle，MCX16ZG rear axle | |
Engine | Model | WP12.430E201, Weichai ,Euro2 , Diesel |
Engine power | 316KW (430HP) @ 1900rpm | |
Max torque | 2060 N.m @ 1000-1400rpm | |
Air intake type | turbo-charge and inter-cool | |
Alignment of cylinders | 6 cylinders in line | |
Fuel injection type | Direct injection | |
Compression ratio | 17: 1 | |
Bore * Stroke | 126x155mm | |
Gearbox | HW19712 gearbox with HW70 power take-off, 12 forward speeds + 2 reverse speeds | |
Steering | BOSCH | |
Fuel tank | 400L fuel tank | |
Suspension | Front and rear reinforced multi-leaf springs (9/12) | |
Main beam | Double layer frame (8+8/300) | |
Other | ABS (4S/4M) | |
