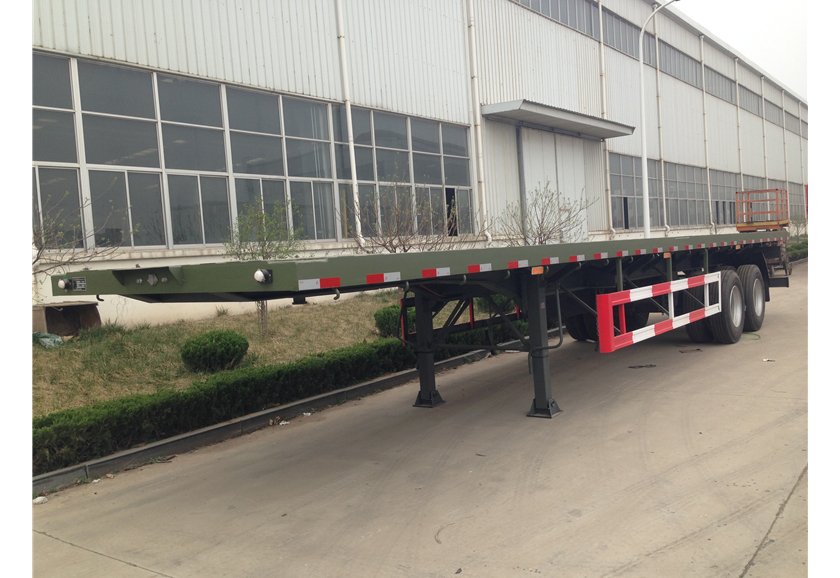

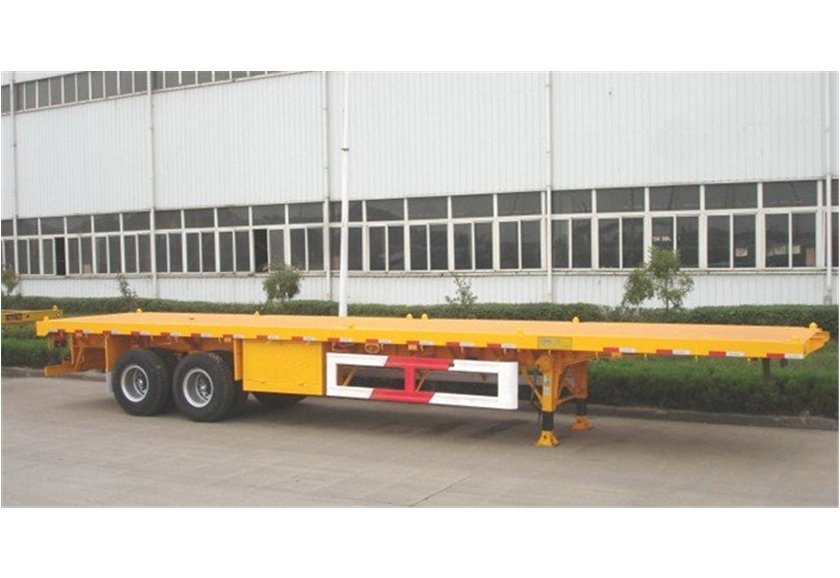

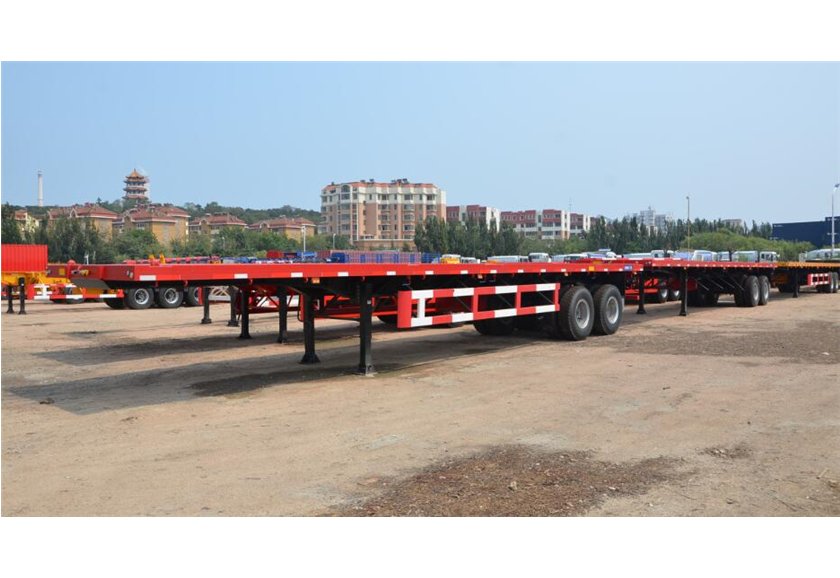

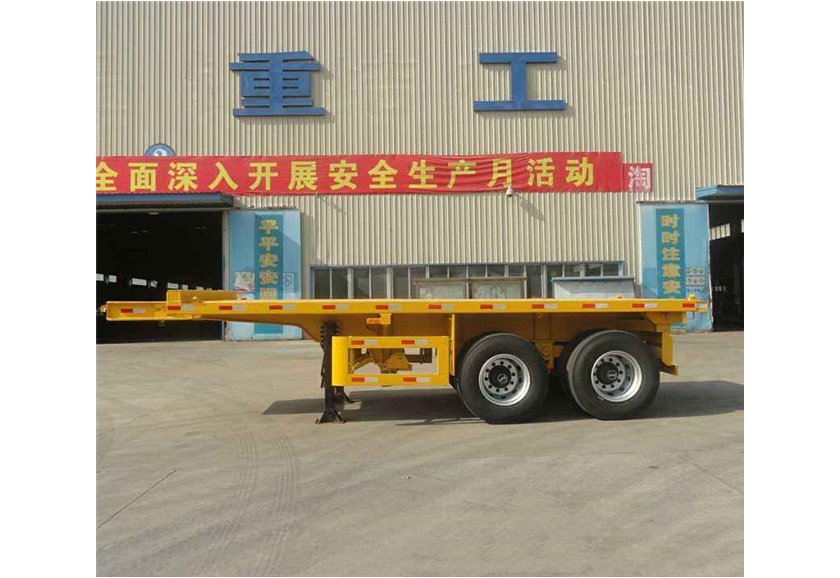

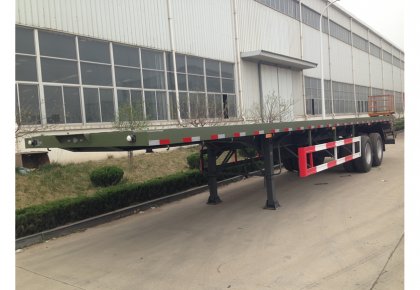

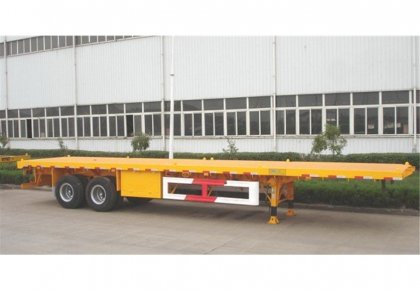

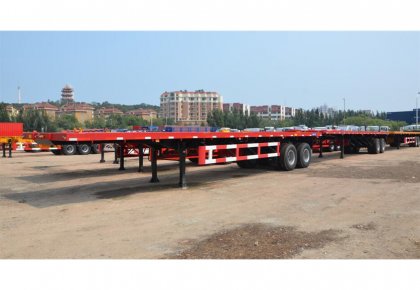

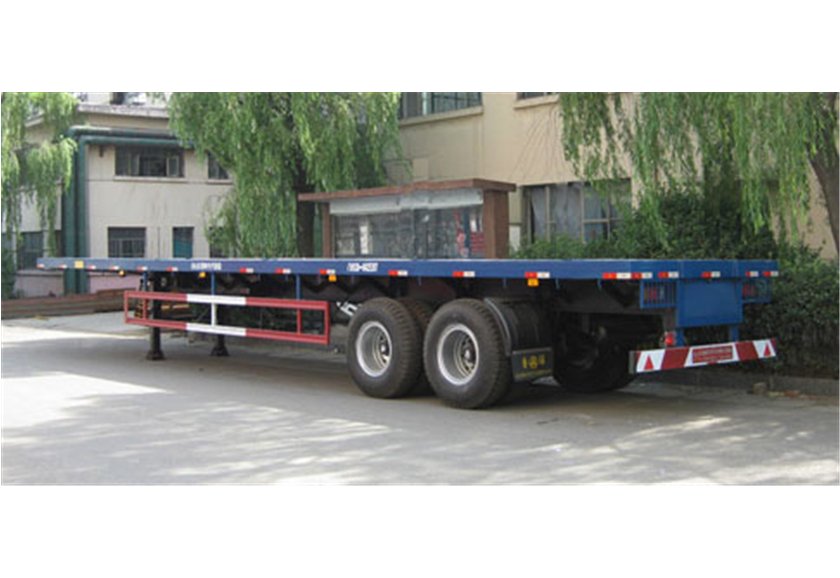

Flatbed Semi Trailer I. DIMENSIONS | ||
Overall Dimension | Length(mm) | 12340 |
Width(mm) | 2490 | |
Height(mm) | 1580 | |
Tare Weight(kg) | 6500 | |
Payload(kg) | 30000 | |
Quantity of Axle | 2 | |
Wheelbase(mm) | 8500+1305 | |
Wheel Track(mm) | 1840/1840 | |
Rear Overhang(mm) | 1500 | |
Departure Angle(°) | 26 | |
II. STANDARD SPECIFICATION | ||
NO. | Products | Technical Specification, Brand, etc |
NO. | Products | Technical Specification, Brand, etc |
1 | Main Frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 14mm; Under Flange thickness: 16mm; Ventral Flange thickness: 8mm |
2 | Axle | 13T x 2 pcs |
3 | Landing Gear | 28T capacity, gear outside. |
4 | Braking System | WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks |
5 | Light | LED side lights and rear lights, width lamp |
6 | Leaf Spring | 10 leaves |
7 | Kingpin | 3.5" fabricated type |
8 | Electrical System | 24V |
9 | Tyre | 12R22.5 - 8 pcs |
10 | Painting | Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
11 | Accessories | Standard tool box, spare tire carrier |
