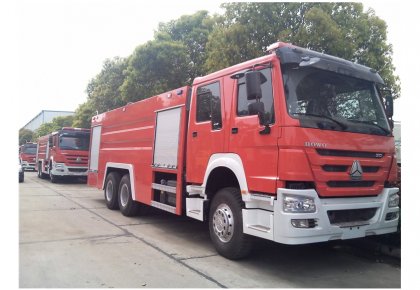

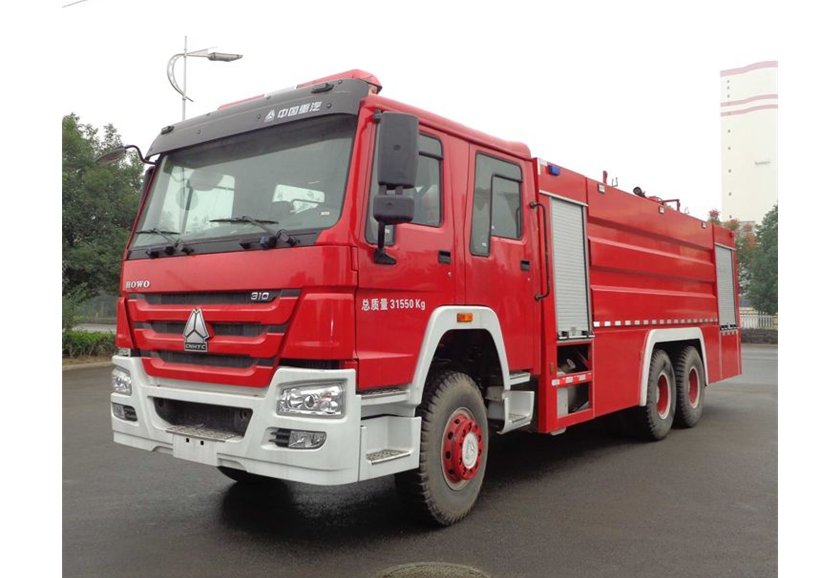

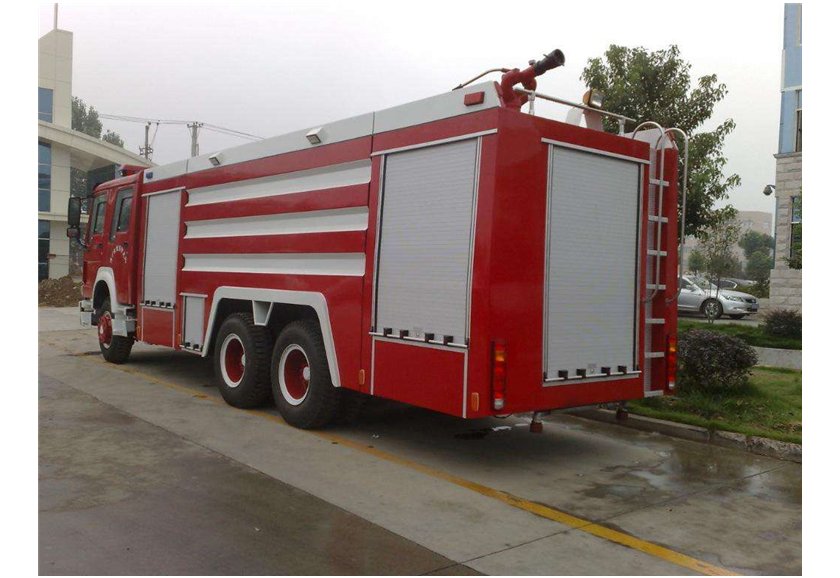

HOWO 6x4 Fire Fighting Truck

Cabin

HOWO flat cabin

Engine

Type: Diesel 4-stoke Direct injection, Inner cooling.

Model:

WP10.380E22

WEICHAI brand

Engine power

380HP/280kW

Gear box

CNHTC

Max torque:2200NM

Model:

HW19710+HW50

Speed:

10speed, 2reverse

Axle(front/rear)

Front axle

VGD95 front steering axle

Tandem

HC16 double reduction hub reductor driving axle

Steering

ZF8118, LHD/ RHD is optional

Tyre

10+1 spare tyre with rim

12.00R20 radial tyre

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

10/12

Tanker body: Water: 10000kg   Foam: 2000kg

Overall dimension(mm): 9920x2500x3600mm (Length x width x height)
