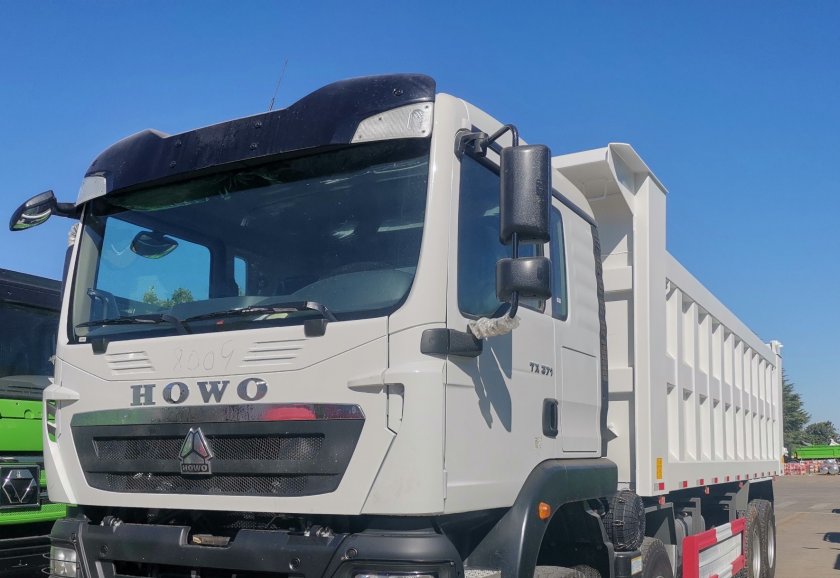

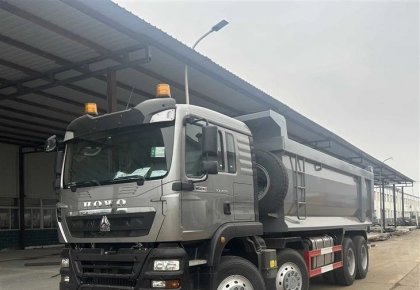

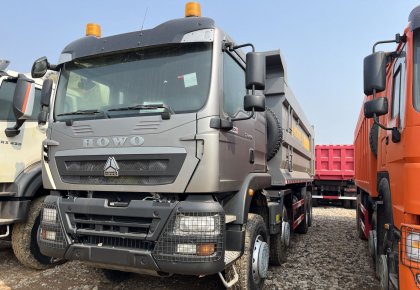

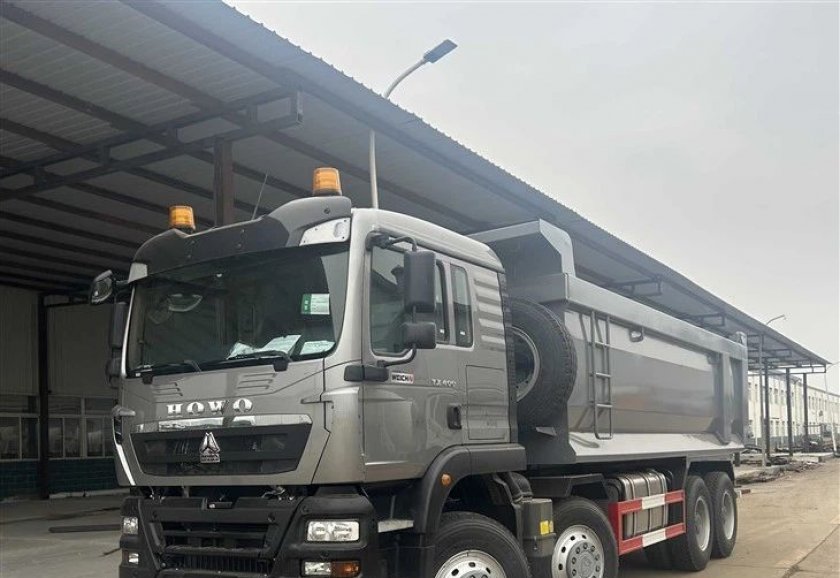

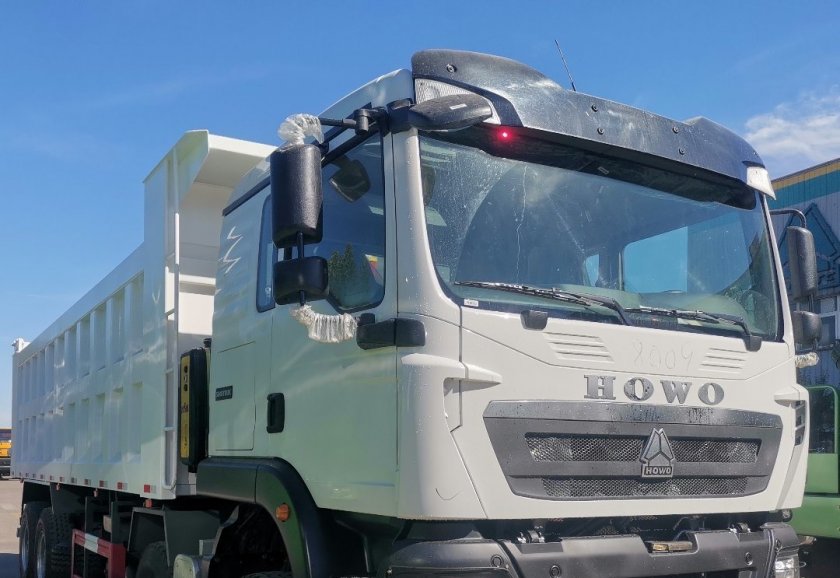

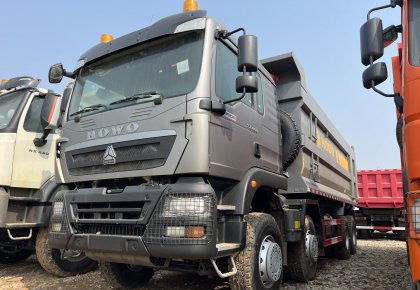

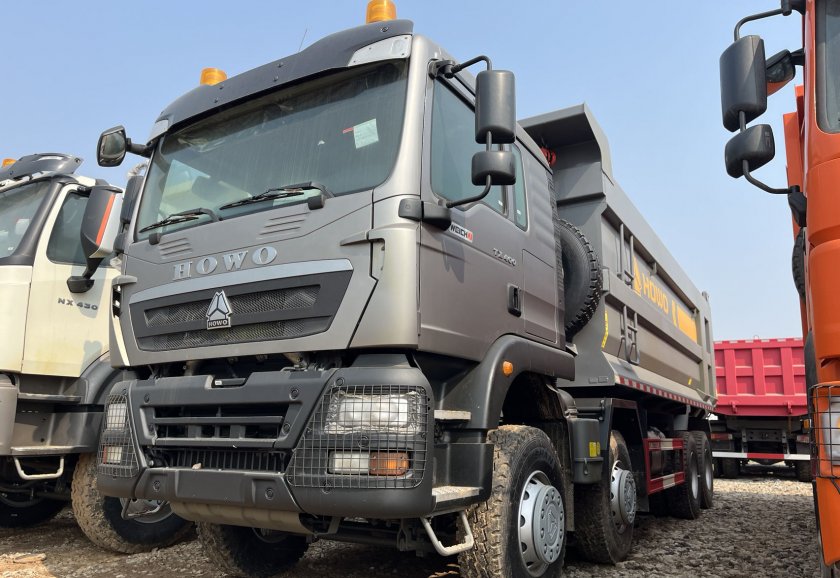

Name | New HOWO TX 8×4 Dump Truck | |
Size (mm) | 10500 x 2550 x 3500 | |
Cab | TX flat roof cabin with A/C | |
Tires | 12.00R20, 10+1pcs | |
Axle | VGD95 front axle，MCP16ZG rear axle | |
Engine | Model | WP12.400E201, Weichai ,Euro2 , Diesel |
Engine power | 294KW (400HP) @ 2100rpm | |
Max torque | 1780 N.m @ 1000-1400rpm | |
Air intake type | turbo-charge and inter-cool | |
Alignment of cylinders | 6 cylinders in line | |
Fuel injection type | Direct injection | |
Compression ratio | 17: 1 | |
Bore * Stroke | 126x155mm | |
Gearbox | HW19710 gearbox with HW50 power take-off, 10 forward speeds + 2 reverse speeds | |
Steering | BOSCH | |
Fuel tank | 400L fuel tank | |
Suspension | Front and rear reinforced multi-leaf springs (11/11/12) | |
Main beam | Double layer frame (8+8/300) | |
Dumper box | 7300 x 2550 x 3500mm, bottom plate thickness is 8mm, side plate thickness is 6mm. Front lifting | |
