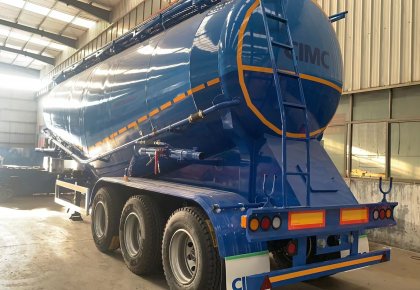

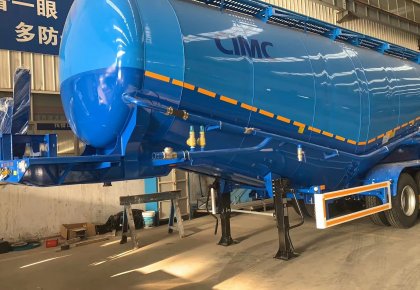

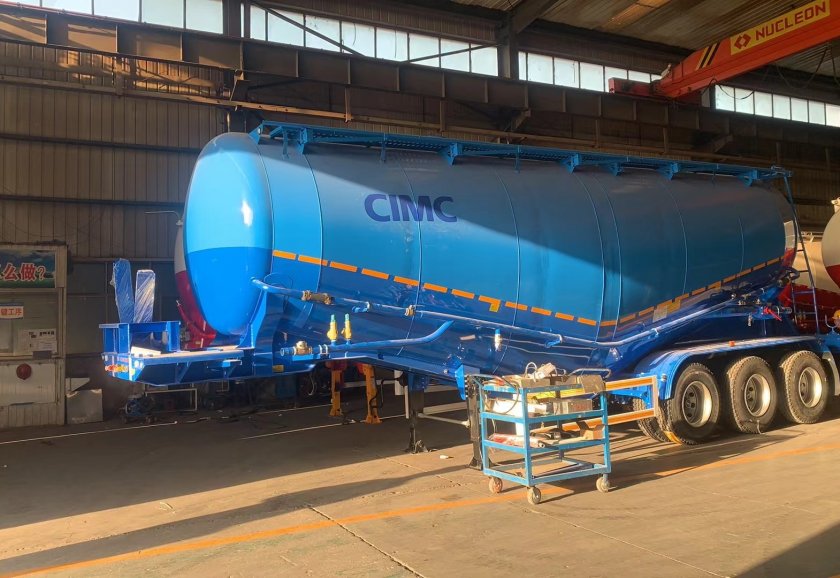

Product Name | CIMC 3 Axles Cement Tank Semi Trailer |
Function | Cement transport |
Overall dimension (mm) | 10,200 * 2,550 * 3,995 |
Maximum volume (CBM) | 45 |
Tare weight (kg) | 8,500 |
Compartment | 1 |
Tank body material | 3mm |
End plate material | 3.5mm |
Manhole cover | 2 sets, standard |
Relief valve | 1 set, standard |
Air compressor | BOHAI brand, HYCW-12/2, 12m³, twin cylinder |
Diesel engine | WEICHAI brand, 4102, |
Axle | Standard 13 tons * 3 pcs |
Suspension system | Mechanical suspension 90/10/13 |
Tire | LINGLONG brand, 12R22.5 * 12+1 spare tire |
Rim | 9.0 * 12+1 spare rim |
Central pivot | 90mm |
Landing gear | Standard single acting 28 tonnes |
Braking system | Four double air rooms and two singles |
Engine | 1 pcs |
Air compressor | 1 pcs |
Electrical system | Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light A standard 6-conductor cable |
Side guard | Standard |
Paint color / Logo | Custom (Polyester paint) |
Packaging | Waxing before shipment |
