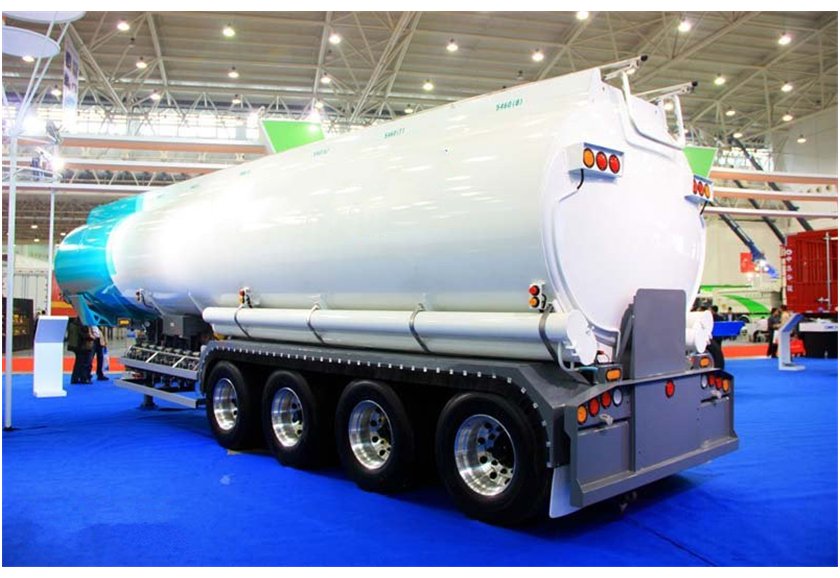

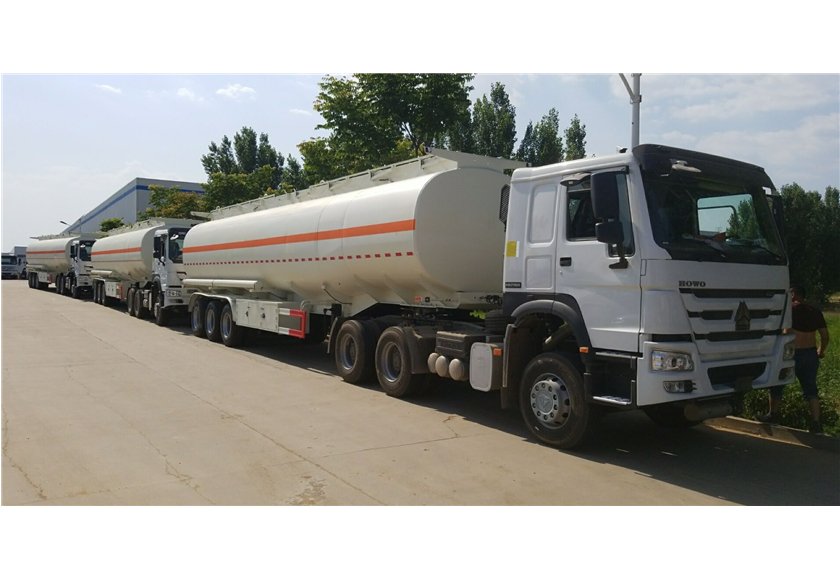

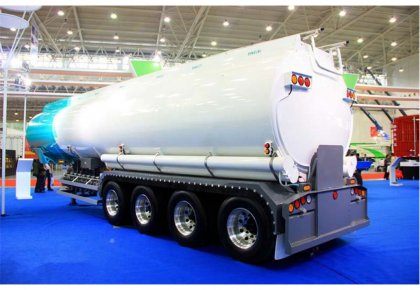

Fuel Tanker Trailer I. DIMENSIONS | ||
Overall Dimension | Length(mm) | 13000 |
Width(mm) | 2500 | |
Height(mm) | 3850 | |
Volume | 60000 liters | |
Quantity of Axle | 4 | |
Wheelbase(mm) | 6800+1305+1305+1305 | |
Wheel Track(mm) | 1840/1840/1840 | |
Rear Overhang(mm) | 1500 | |
Departure Angle(°) | 17 | |
II. STANDARD SPECIFICATION | ||
NO. | Products | Technical Specification, Brand, etc |
1 | Main Frame | Q345 steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 450mm , Upper Flange thickness: 14mm; Under Flange thickness: 16mm; Ventral Flange thickness: 8mm |
2 | Axle | 13T x 4pcs (front axle can be lifted) |
3 | Landing Gear | JOST E100, gear outside. |
4 | Braking System | Pneumatic |
5 | Air Chamber | 2 pcs double type, 1 pc single type |
6 | Leaf Spring | 10 leaves (90mm*13mm) |
7 | Kingpin | 3.5" welding type |
8 | Electrical System | 24V |
9 | Tyre | 12R22.5 - 16+1pcs |
10 | Tool Box | with |
11 | Tanker body | Q345B, 5mm |
12 | Front/Rear cover | Q345, 6mm |
13 | Washboard | Q345, 5mm |
14 | Compartment | 6 |
15 | Discharging valve | 1 (4 inches) |
16 | Flowmeter | 1 (mechanical) |
17 | Fire extinguisher | 2 x 8kg |
18 | Tyre carrier | with |
