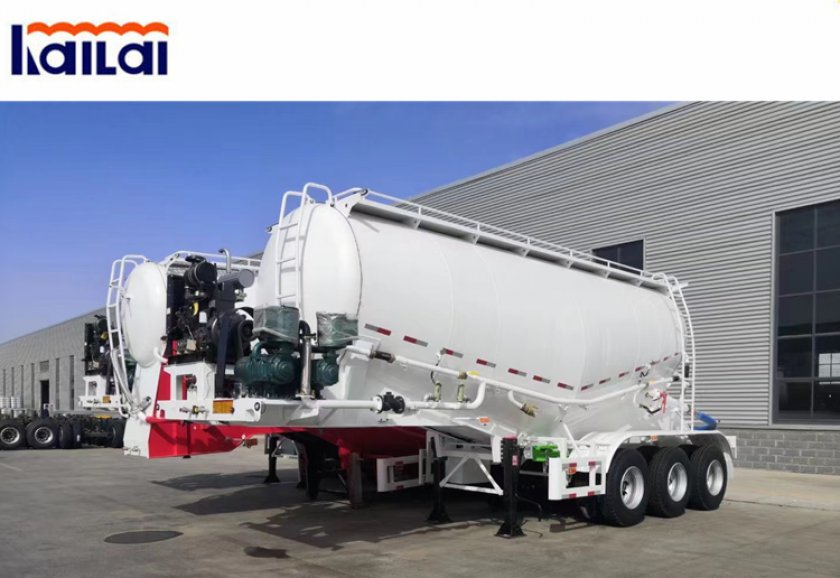

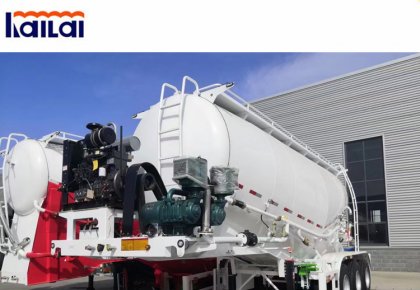

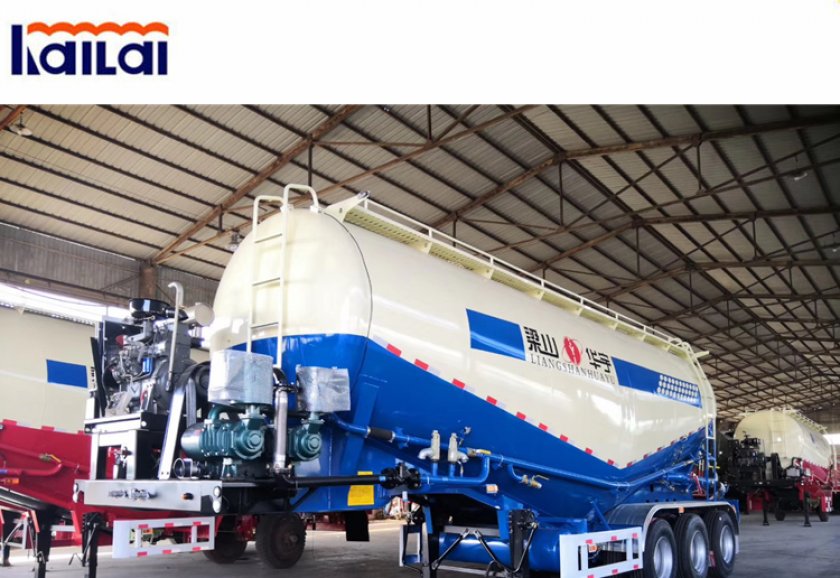

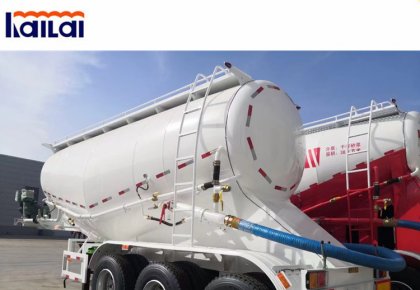

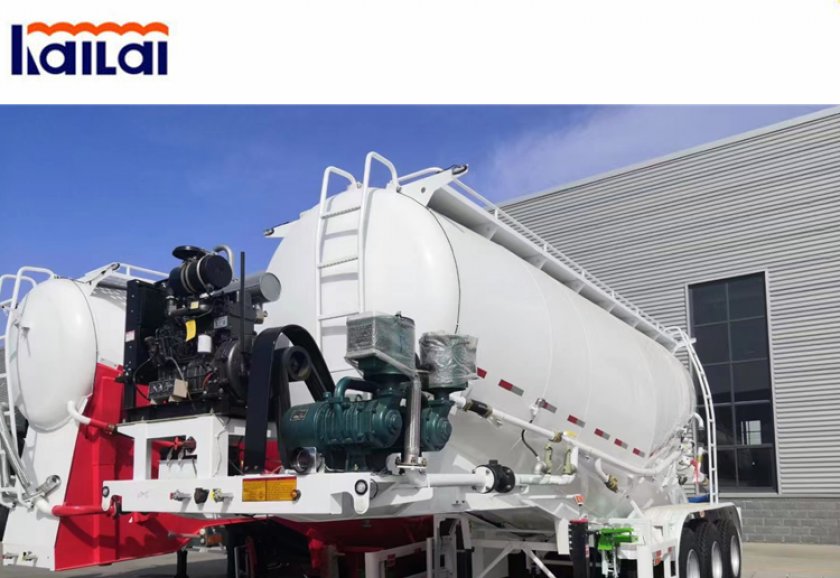

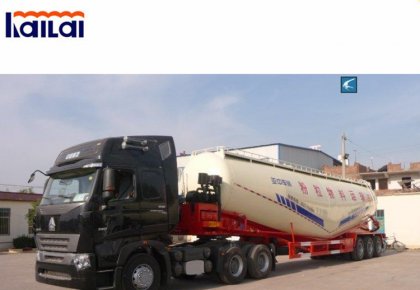

Bulk Cement Semi Trailer | ||
Overall Dimension | Length(mm) | 13000 |
Width(mm) | 2500 | |
Height(mm) | 4000 | |
Tare Weight(kg) | 13850 | |
Payload(kg) | 50000 | |
Volume(cubic meters) | 68 | |
Quantity of Axle | 3 | |
Wheelbase(mm) | 8500+1305+1305 | |
Wheel Track(mm) | 1840/1840/1840 | |
Rear Overhang(mm) | 1690 | |
Departure Angle(°) | 17 | |
Leaf Spring | 11 | |
Tyre | 12.00R20 radial tyre | |
Quantity of Tyre | 12 | |
II. STANDARD SPECIFICATION | ||
NO. | Products | Technical Specification, Brand, etc |
1 | Main Frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam |
2 | Axle | AQ 16T |
3 | Landing Gear | 28T capacity, gear outside. |
4 | Braking System | Pneumatic |
5 | Air Chamber | 2 pcs double type ,2 pcs single type |
6 | Leaf Spring | 11 leaves |
7 | Kingpin | 3.5" welding type |
8 | Electrical System | 24V |
9 | Tyre | 12.00R20 - 12pcs |
10 | Tool Box | With |

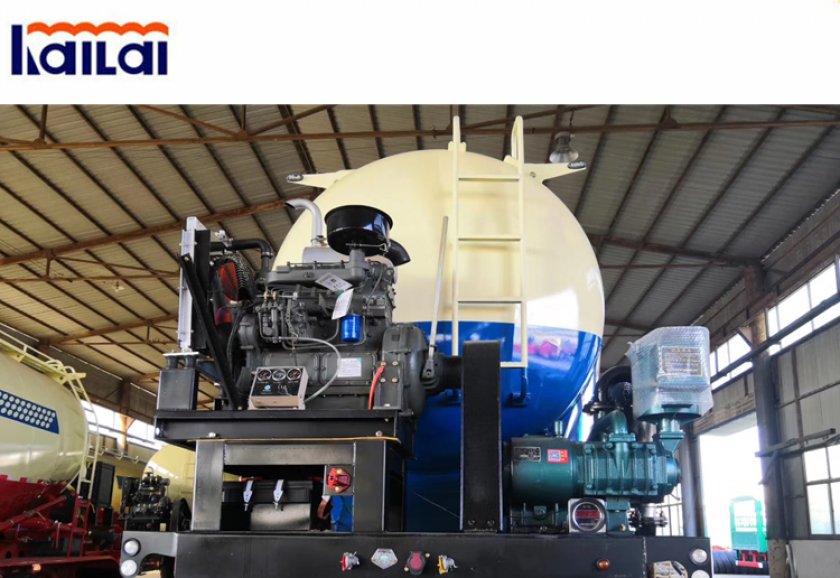

11 | Diesel engine | With |
