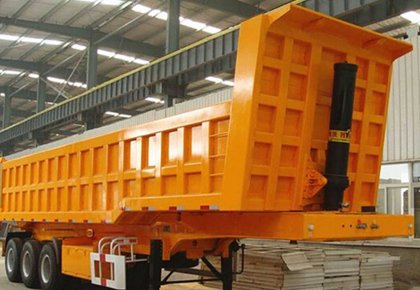

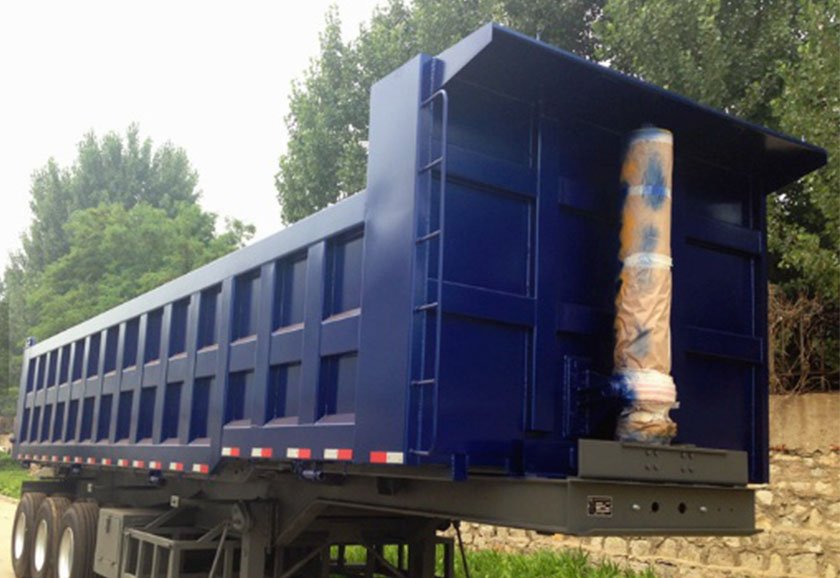

3 axles Dump trailer hydraulic | |||
PARAMETER | Outline Dimension(mm) | L*W*H: 10000X2480X3091(mm) | |
Axle space(mm) | L*W*H: 8,522X2300X1500(mm) | ||
Tare weight(kg) | 9500KGS | ||
Loading capacity | 50000KGS | ||
Box height | 1500mm | ||
OEM | Landing gear | Two speed manual made in china | |
Kingpin | 3.5" king pin | ||
Brake system | Dual line pneumatic brake system. | ||
Abs | None | ||
Brake chamber | Type 30/30 spring brake chamber | ||
Suspension | Spring suspension | ||
Axle | FUWA square axle, 13 ton capacity/set,3pcs | ||
Tire | 11R20 12Pcs,made in china | ||
Rim | 8.0-20 12Pcs,made in china | ||
Tool box | 1(1.4m) | ||
Spare tire carrier | 2 units | ||
OTHERS | Cylinder | 150# cylinder made in china ,4 units | |
Box Material | Q235 and Q345 | ||
Turnover socket | 6 units per side | ||
Rear door | Container type side by side door | ||
Main beam | 500,16/10/20 | ||
Box Thickness | Bottom:8mm | Side:6mm | |
Painting | As customer’s request | ||
