Overall Dimension | 11960mm*2550mm*3800mm |
Upper Body Dimension | 10662mm*2350mm*1600mm |
Max Payload | 80 ton |
Max Volume | 40m³ |
Unloaded Weight | 16,500 kg |
Beam Thickness | Q345B 14/Double (8+8)/16mm |
Beam Height | 500mm |
Side Wall Plate | 6mm thickness Q235 Carbon Steel |
Bottom Plate | 8mm thickness Q235 Carbon Steel |
Axle | YINXIN brand 16 tons x 6 pieces |
Brake System | 6 units T30, 6 units T30/30 brake chamber |
Hydraulic Cylinder | Hyva brand 202 one set |

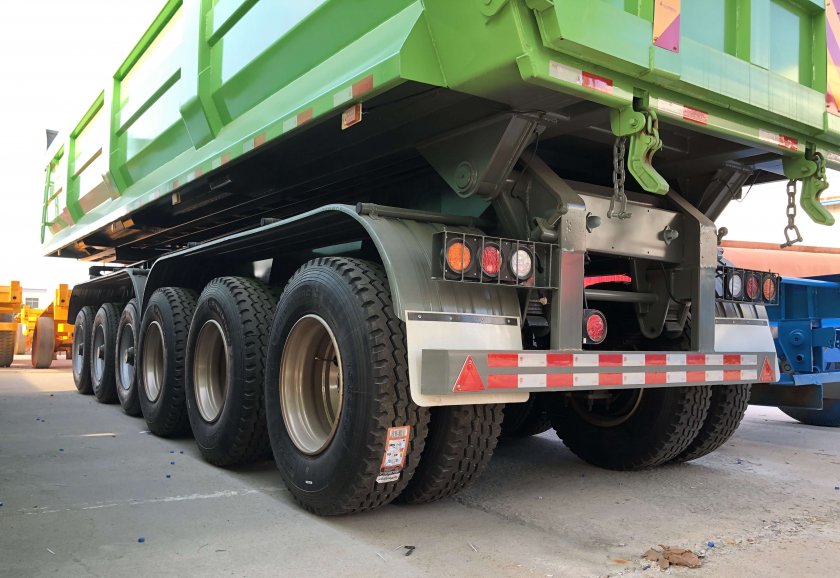

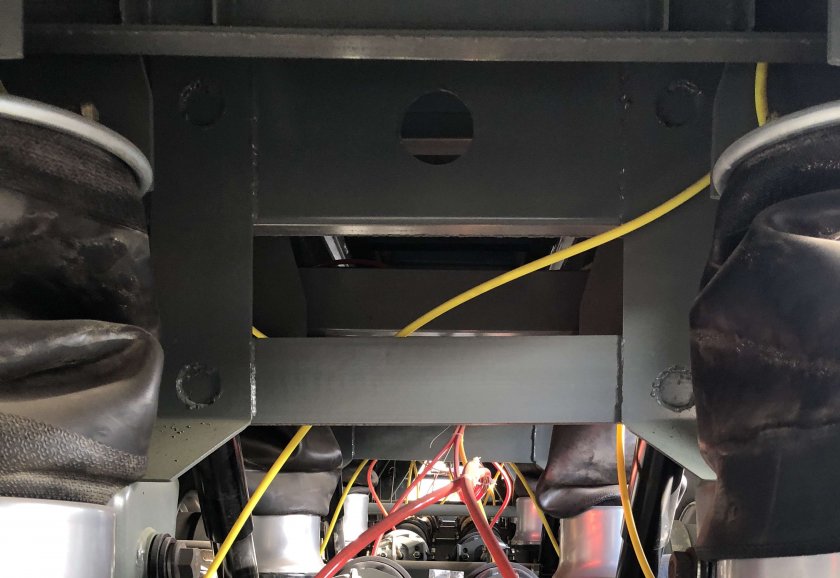

Suspension System | Air Suspension*3 (Front Axle Lifting) Mechanical Suspension*3 (Rear), Thickness of suspension bracket: 12mm; Thickness of balanced pendulum: 12mm Balance pin diameter: 60, heavy mechanical suspension；120mm"16mm' 12 pcs, extended and reinforced spring |

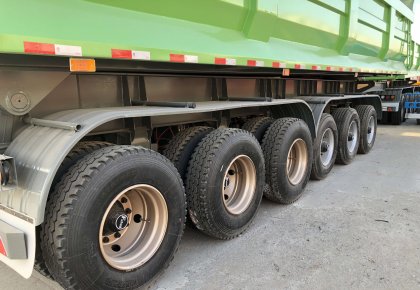

Tire | Front 3 axles 385/65R22.5 single unit 6 pieces, rear 3 axles 13R22.5 twin tires 12 pieces |
Rim | 11.75-22.5 rim 6 pcs, 9.75-22.5 rim 12 pcs |
Landing Gear | YAHUA brand 28T |
King Pin | 3.5 inch bolt-in King pin |
Lights | LED rear and tail combination lights, side marker lights, license plate lights, brake lights. |
Circuitry | 24 volt 6 core circuit |
International standard gas connection, 24V 7-pin socket | |
Others | Whole vehicle shot blasting, two coats of primer, two coats of final paint,complete tools. anti-explosion pipe, antilexplosion hydraulic pipe. |
